FREQUENCY
1–15 GHz
TYP. VSWR
≤ 1.6:1
−10 dB BEAMWIDTH
∼130°
POLARIZATION
Linear (H/V)
Wide-beam coverage
Symmetric E- and H-plane beams, ~130° at −10 dB, for a broad field of view.

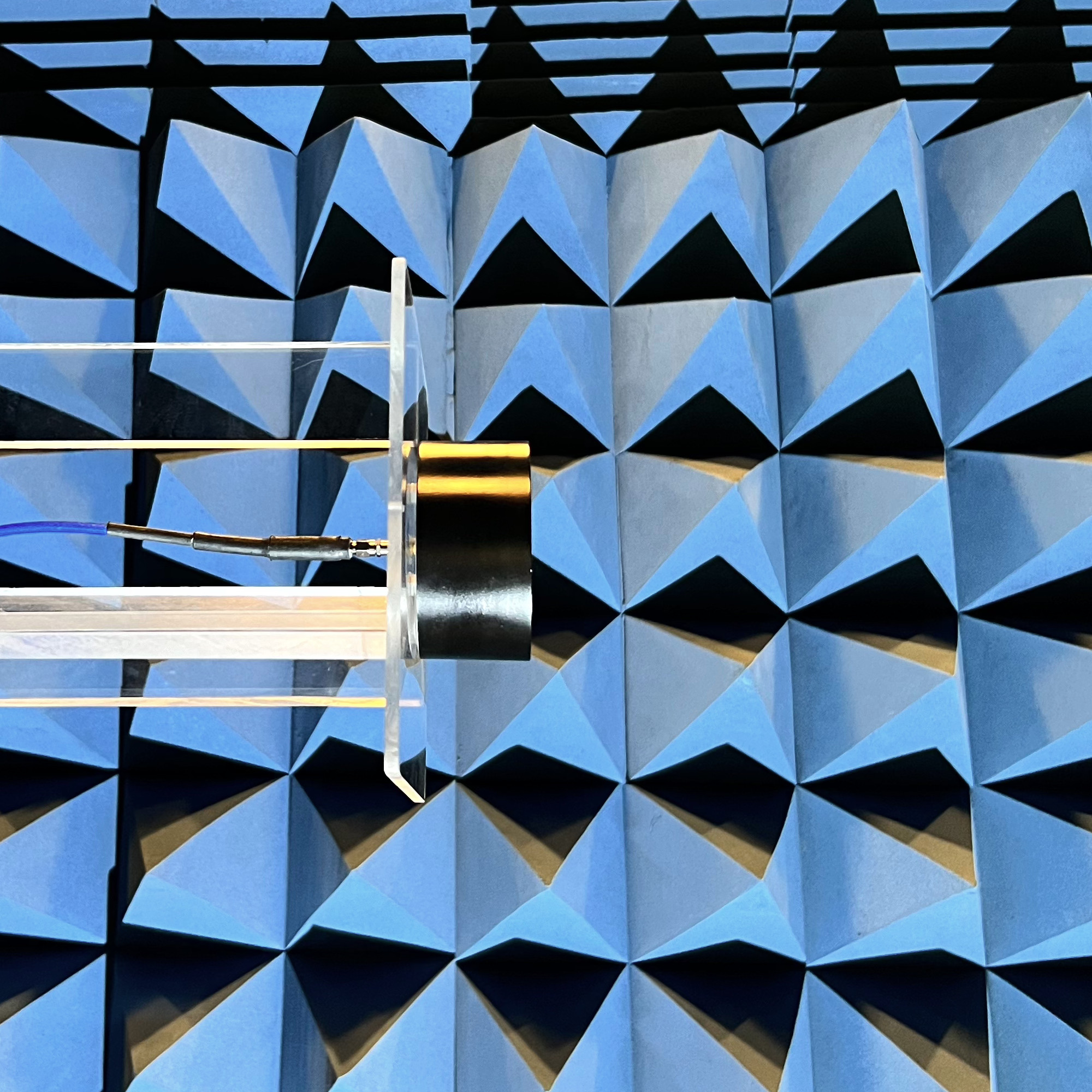

Measured test report

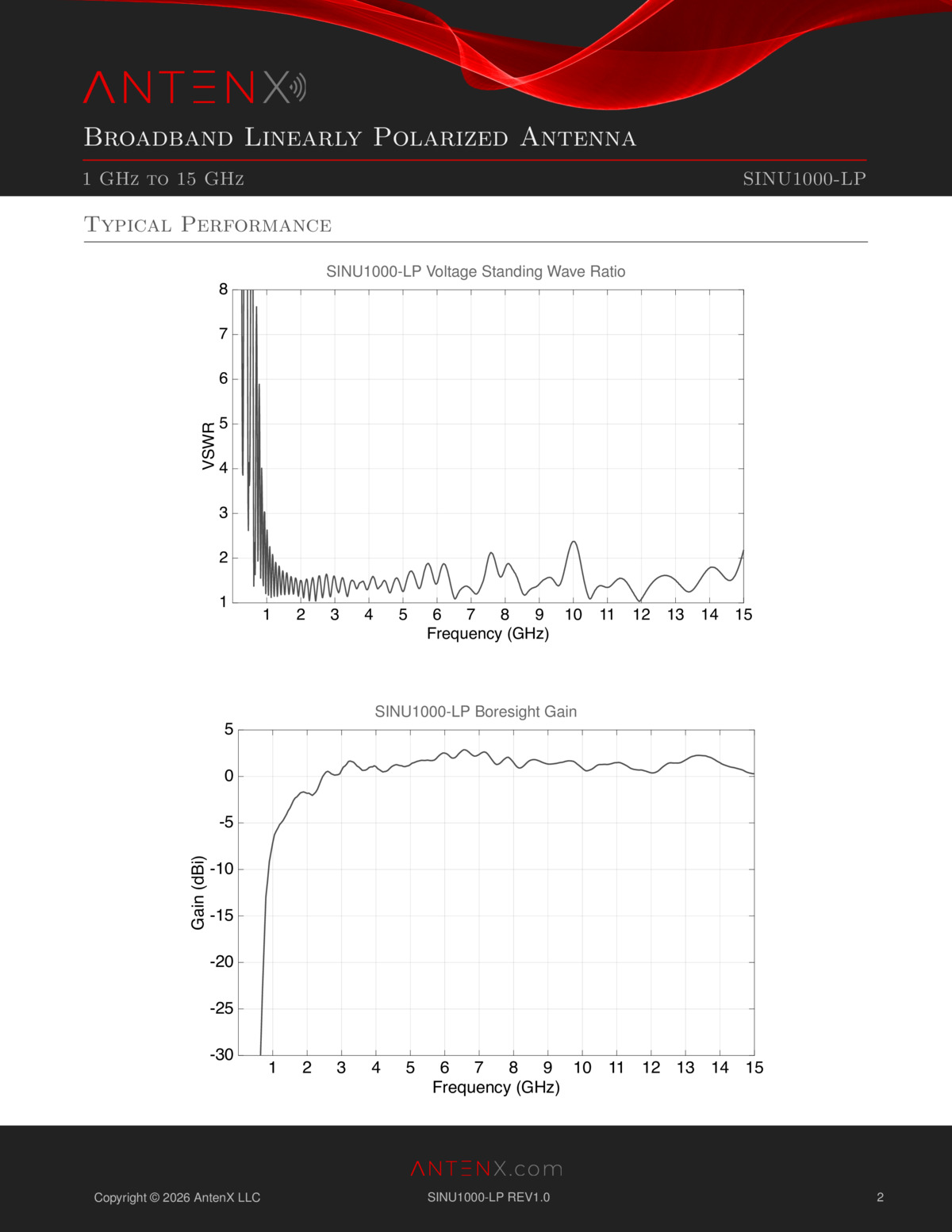

VSWR and boresight gain documented per unit.
Designed in the USA
Designed, assembled, and tested in California.
Product Details

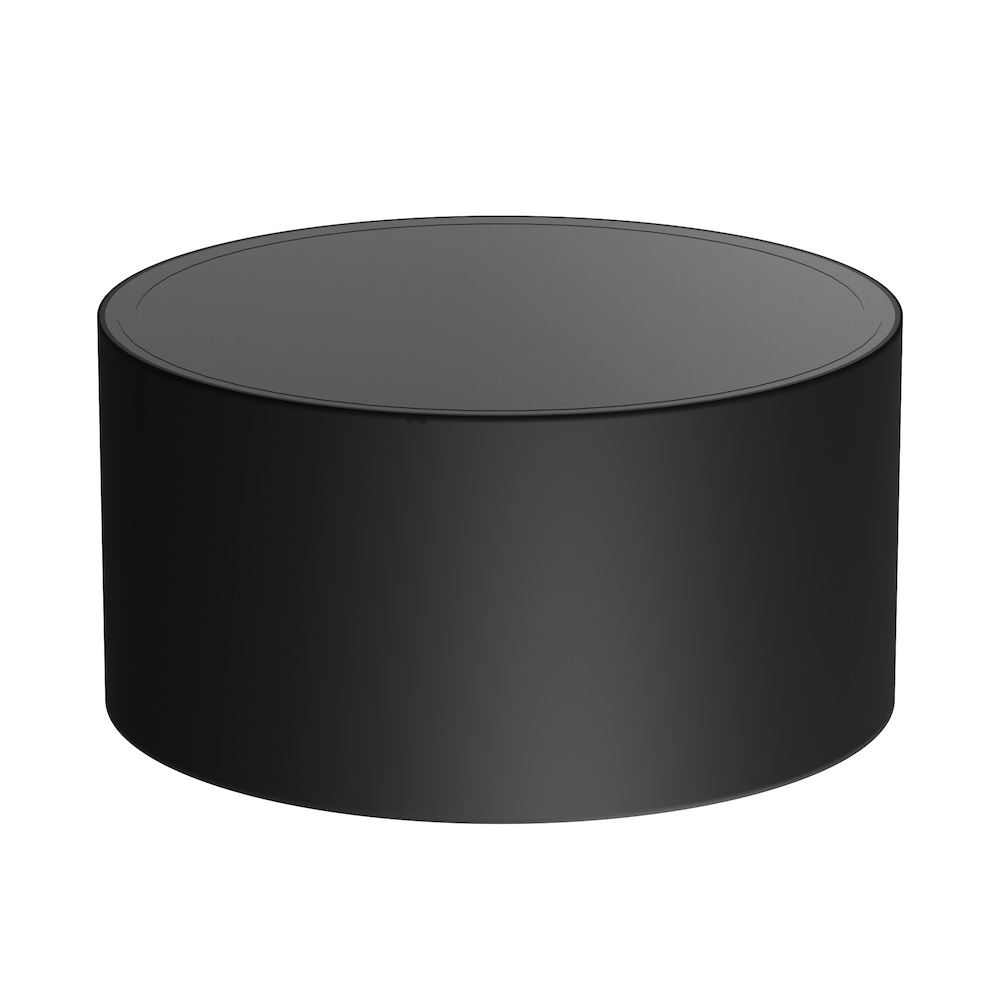

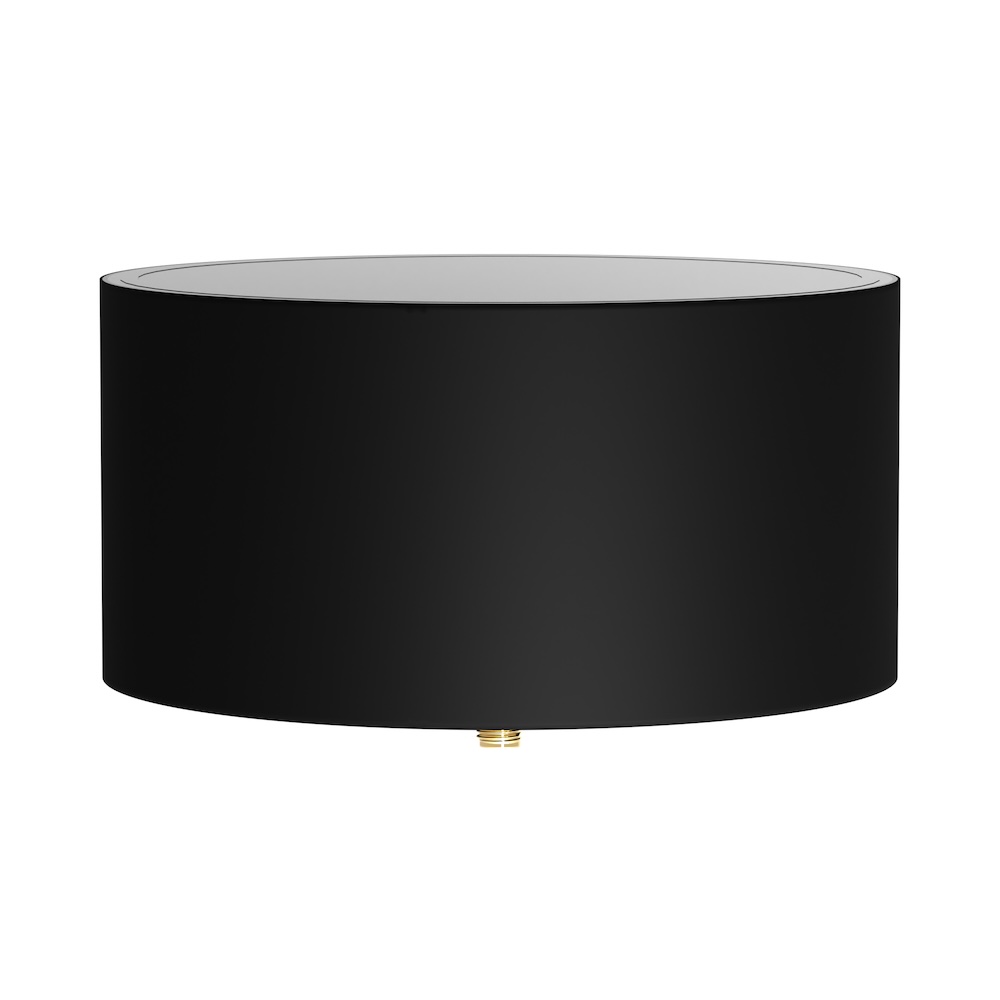

The SINU1000-LP is a cavity-backed 2-arm sinuous antenna that delivers linear polarization continuously from 1 to 15 GHz, a 15:1 bandwidth, from a single element. Its cavity-backed, unidirectional pattern and wide, symmetric E- and H-plane beams (roughly 130° at −10 dB) make it well suited to electronic warfare, ES/SIGINT, spectrum monitoring, and broadband test and measurement. Each antenna is built around a PCB sinuous element in an anodized-aluminum cavity; polarization is linear, with the plane set by the mounting orientation. The antenna feeds through an SMA female connector and handles up to 10 W of input power.
- Suited to electronic warfare, electronic support measures and signals intelligence (ES/SIGINT), spectrum monitoring, and broadband test and measurement.
- Cavity-backed 2-arm sinuous design gives a unidirectional pattern and continuous operation across the full 1 to 15 GHz range (15:1 bandwidth).
- Wide, symmetric E- and H-plane beams (~130° at −10 dB) provide a broad angular field of view.
- Linear polarization with well-matched VSWR across the band; SMA female connector with #10-24 mounting; handles up to 10 W of input power.
- Each unit ships with a measured test report of VSWR and boresight gain; raw data (.txt/.s1p) and custom characterization available on request.

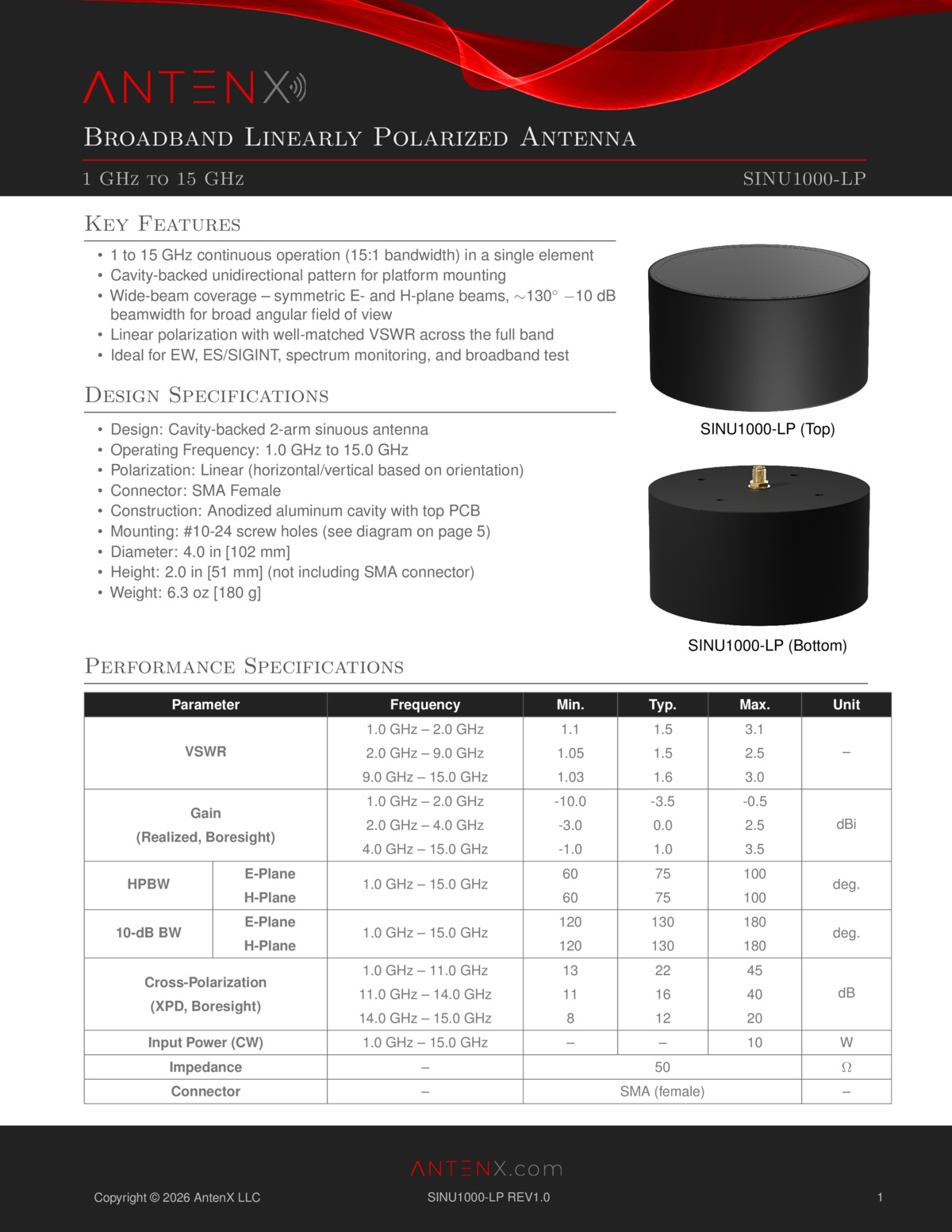

Specifications
General
| Design | Cavity-backed 2-arm sinuous |
| Polarization | Linear (H/V by orientation) |

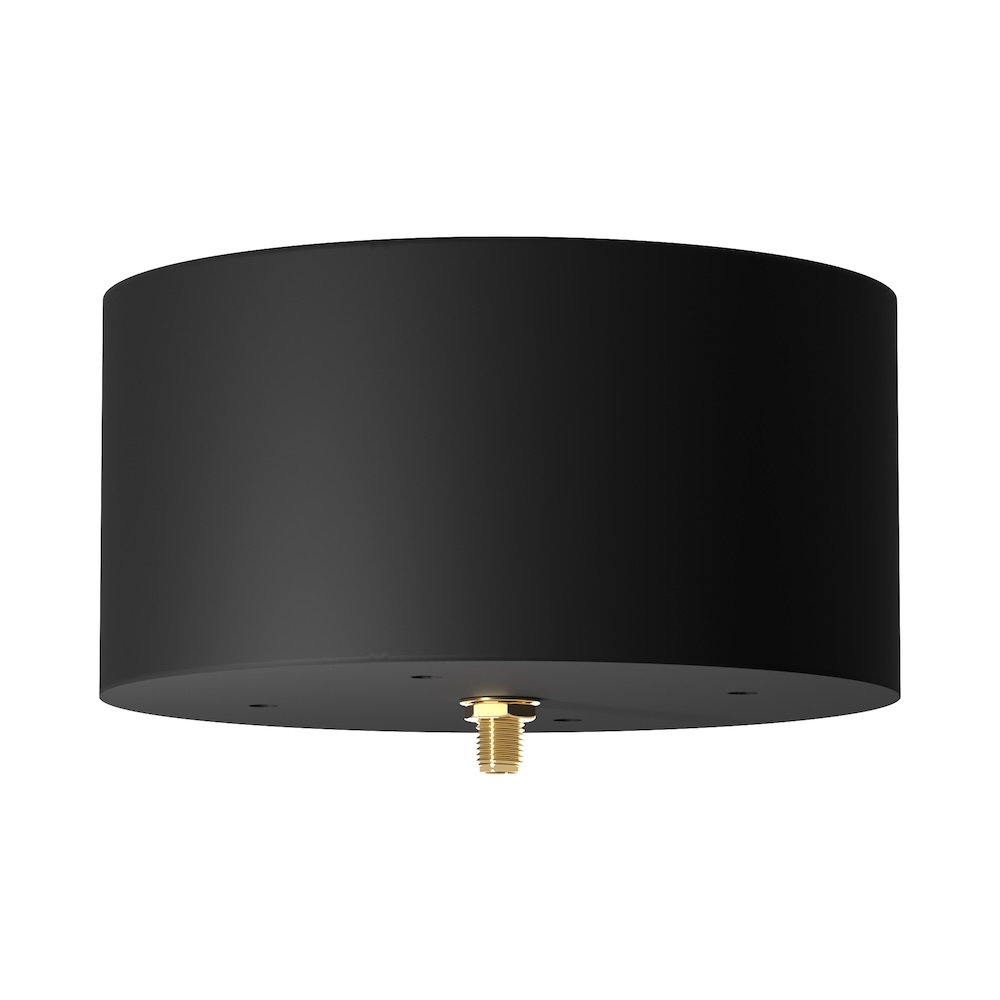

| Connector | SMA female |
| Impedance | 50 Ω |
| Maximum input power | 10 W |
| Construction | Anodized aluminum cavity with PCB sinuous element |

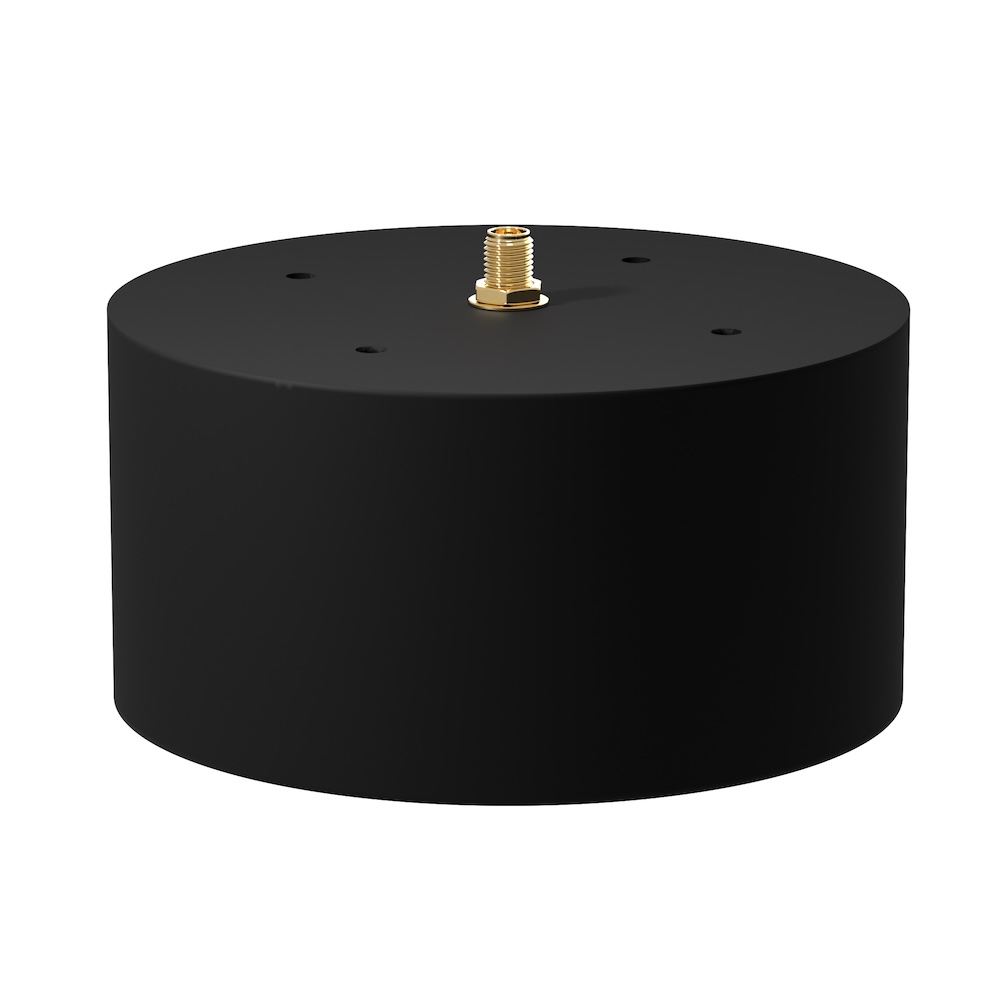

| Mounting | #10-24 threaded holes |

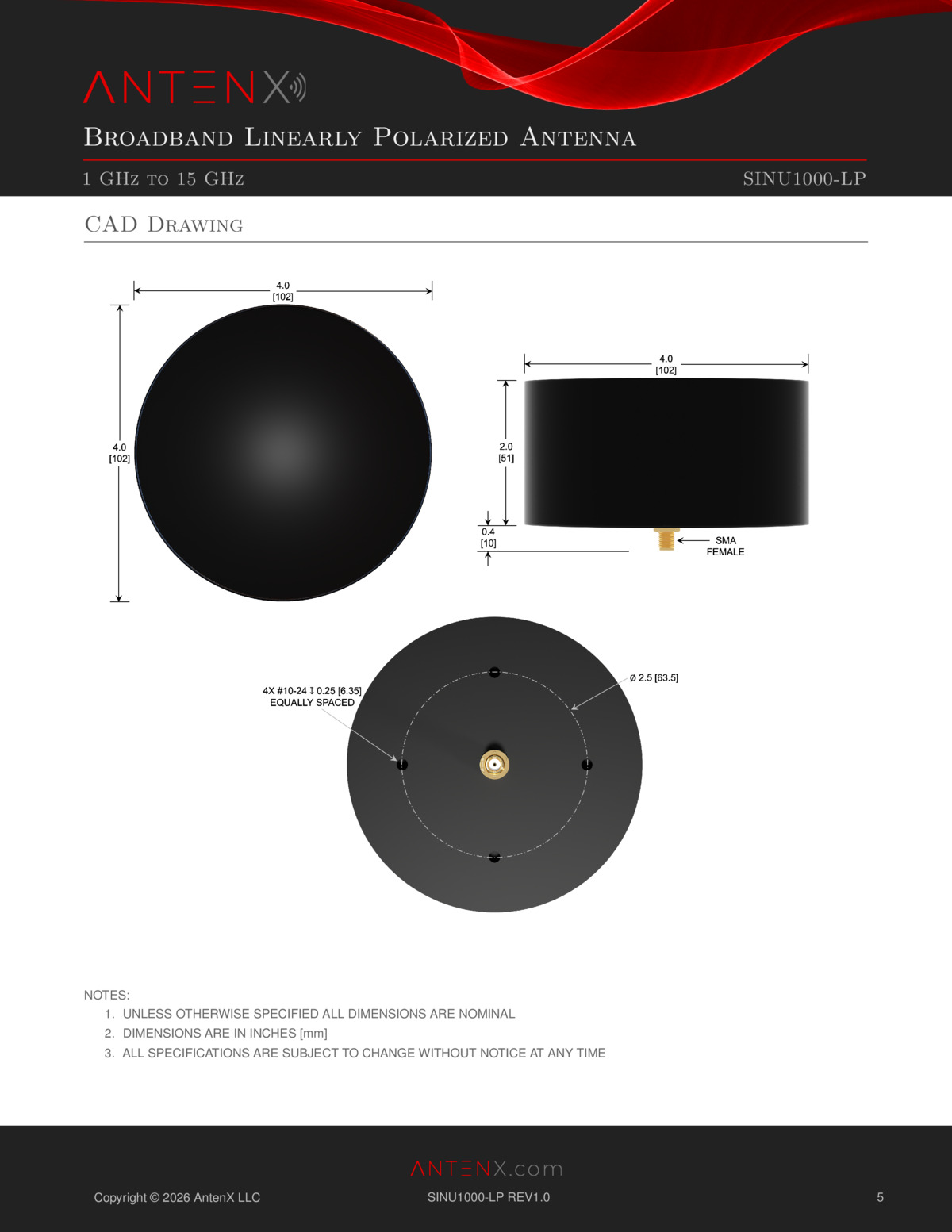

| Dimensions (dia × H) | 102 mm dia × 51 mm (4.0 × 2.0 in) |
| Weight | 180 g (6.3 oz) |

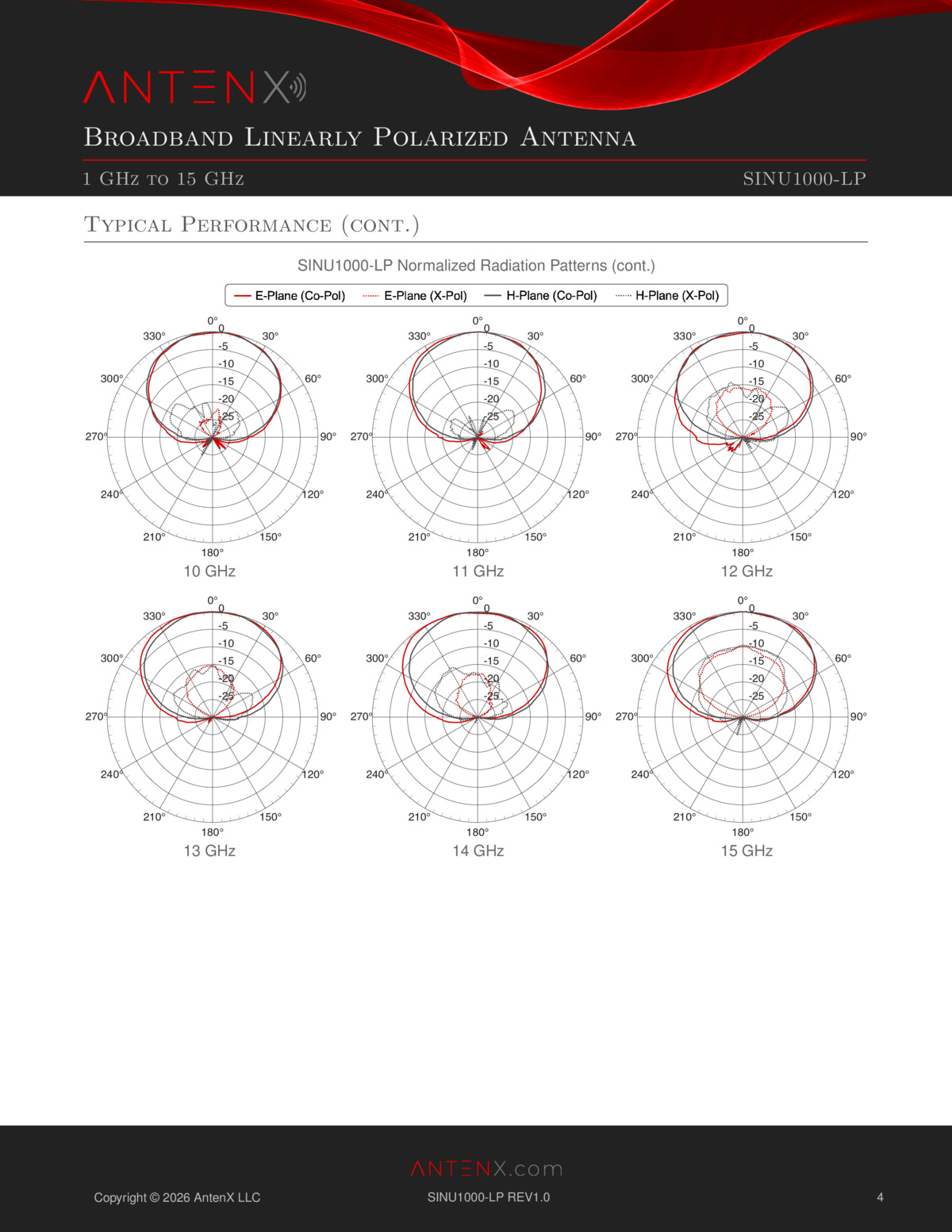

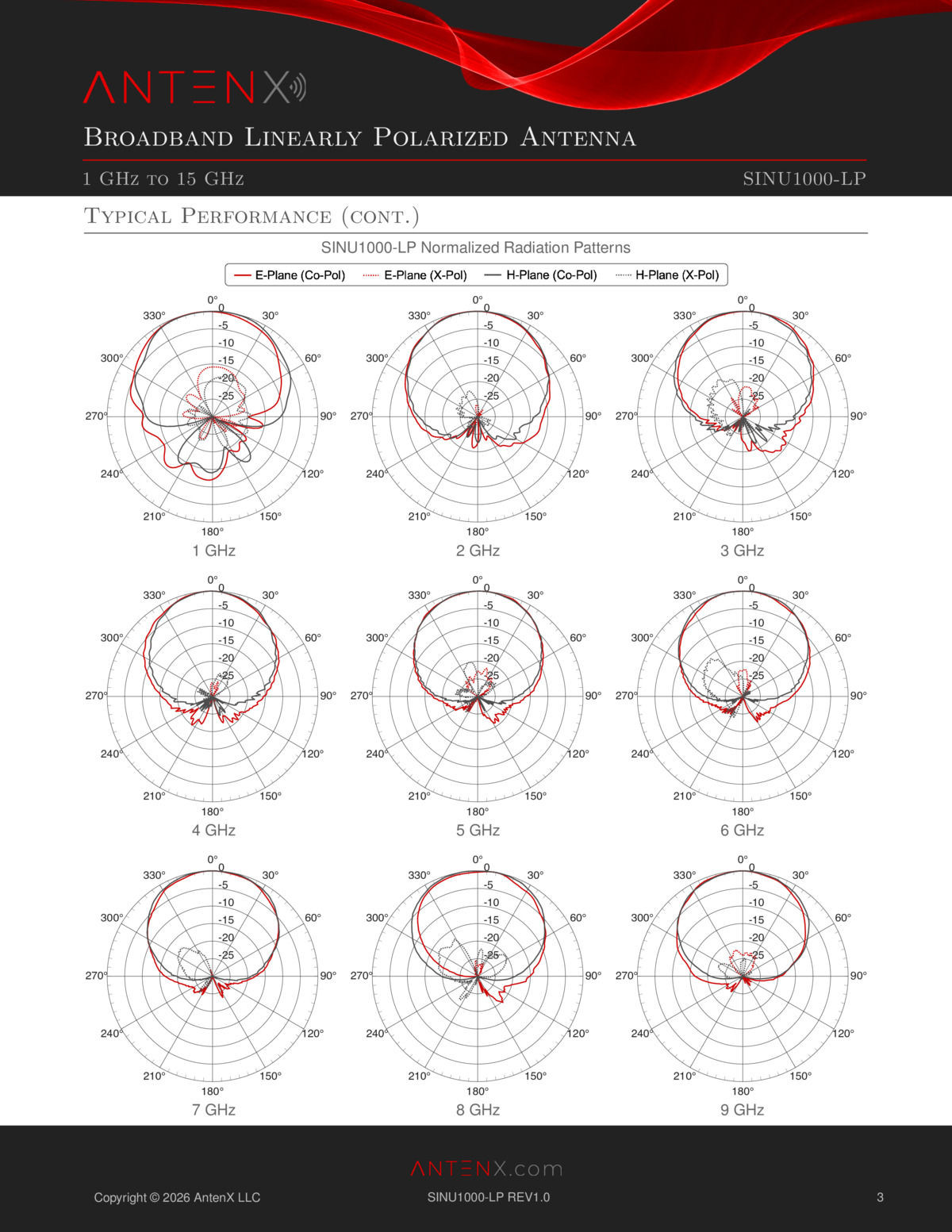

Performance
| PARAMETER | FREQUENCY | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| VSWR | 1.0 – 2.0 GHz | 1.1 | 1.5 | 3.1 | – |
| 2.0 – 9.0 GHz | 1.05 | 1.5 | 2.5 | ||
| 9.0 – 15.0 GHz | 1.03 | 1.6 | 3.0 | ||
| Gain | 1.0 – 2.0 GHz | -10.0 | -3.5 | -0.5 | dBi |
| 2.0 – 4.0 GHz | -3.0 | 0.0 | 2.5 | ||
| 4.0 – 15.0 GHz | -1.0 | 1.0 | 3.5 | ||
| Cross-pol (XPD) | 1.0 – 11.0 GHz | 13 | 22 | 45 | dB |
| 11.0 – 14.0 GHz | 11 | 16 | 40 | ||
| 14.0 – 15.0 GHz | 8 | 12 | 20 | ||
| HPBW (E & H) | 1.0 – 15.0 GHz | 60 | 75 | 100 | deg |
| −10 dB BW (E & H) | 1.0 – 15.0 GHz | 120 | 130 | 180 |
Specifications are typical and subject to change without notice. Height excludes the SMA connector. Each unit ships with a measured test report.
