Product Details
- Precision microwave VNA calibration kit with unsurpassed price to performance ratio
- Perfect for use in education and industry to achieve excellent accuracy at a low-cost and save wear-and-tear on high-end expensive calibration kits
- Each kit has been individually measured and a full set of calibration constants specific to each kit are provided to maximize accuracy and performance (.s2p files are also provided for each standard for use with VNAs that support data-file based calibrations)

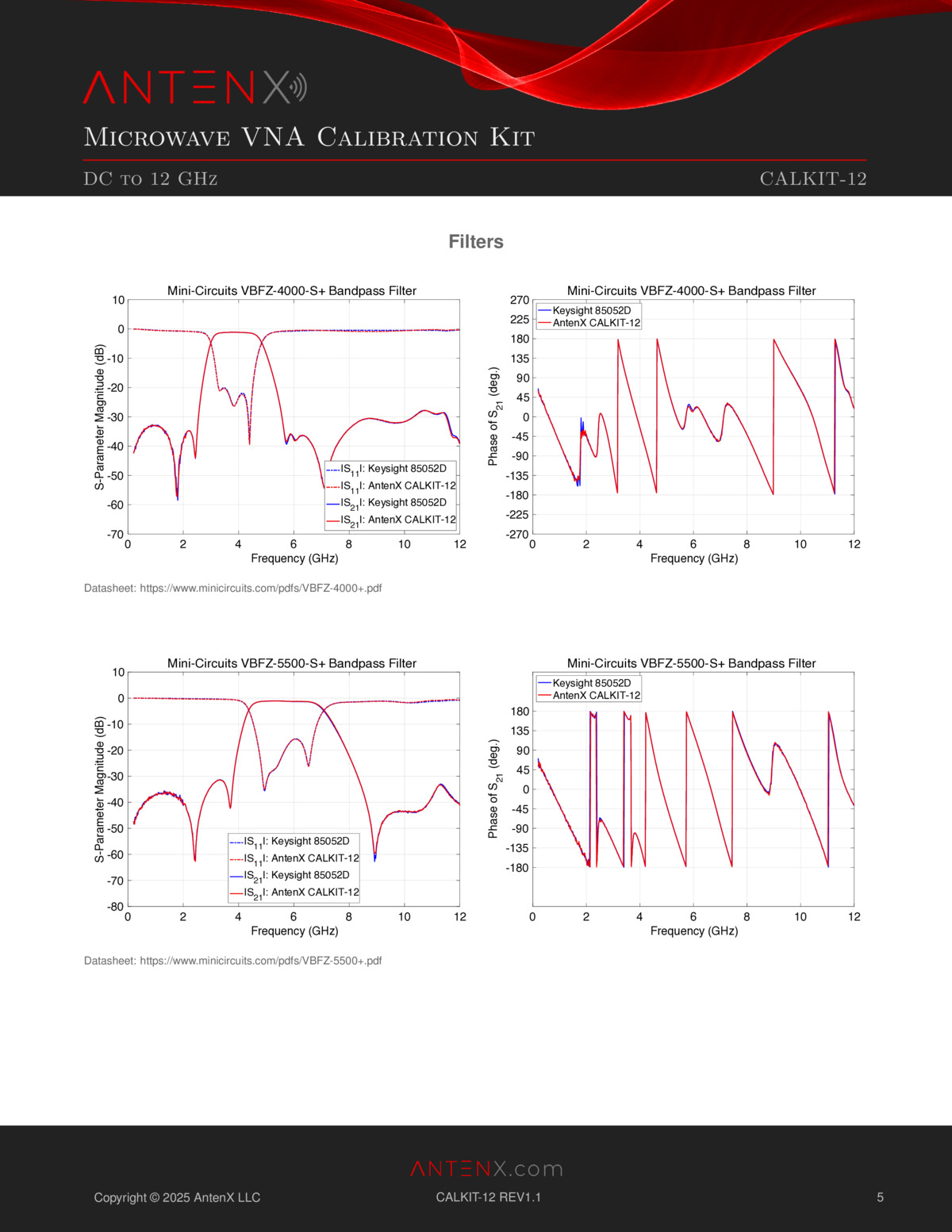

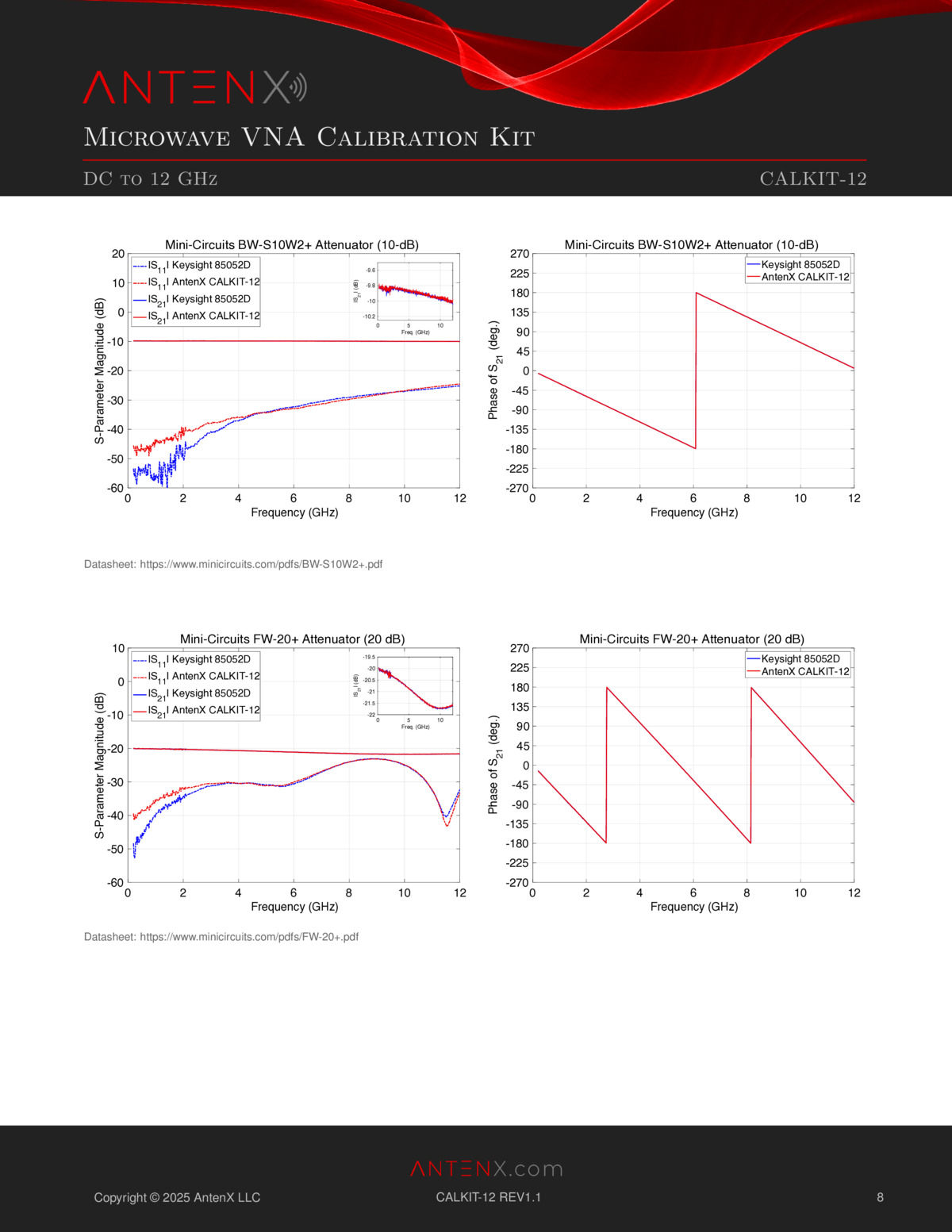

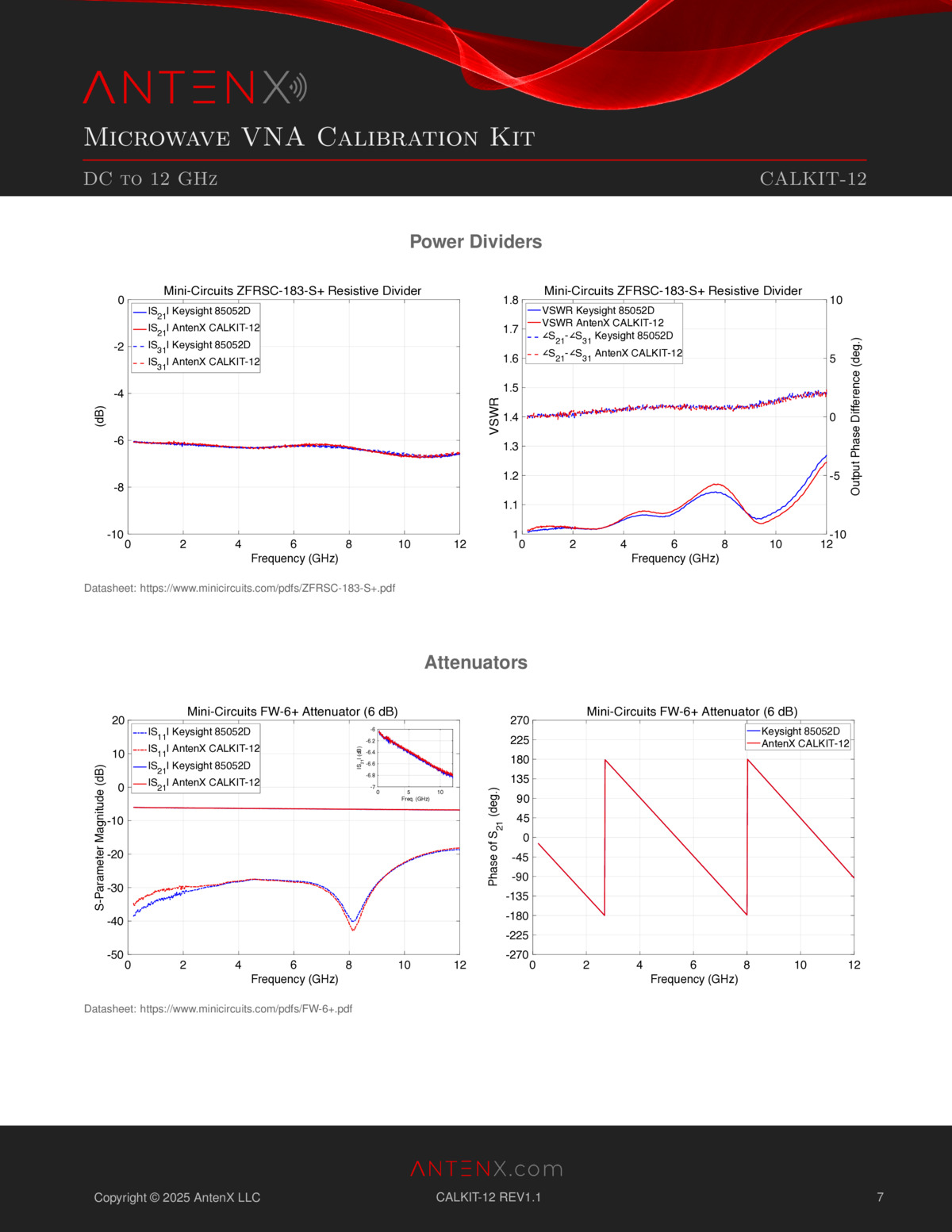

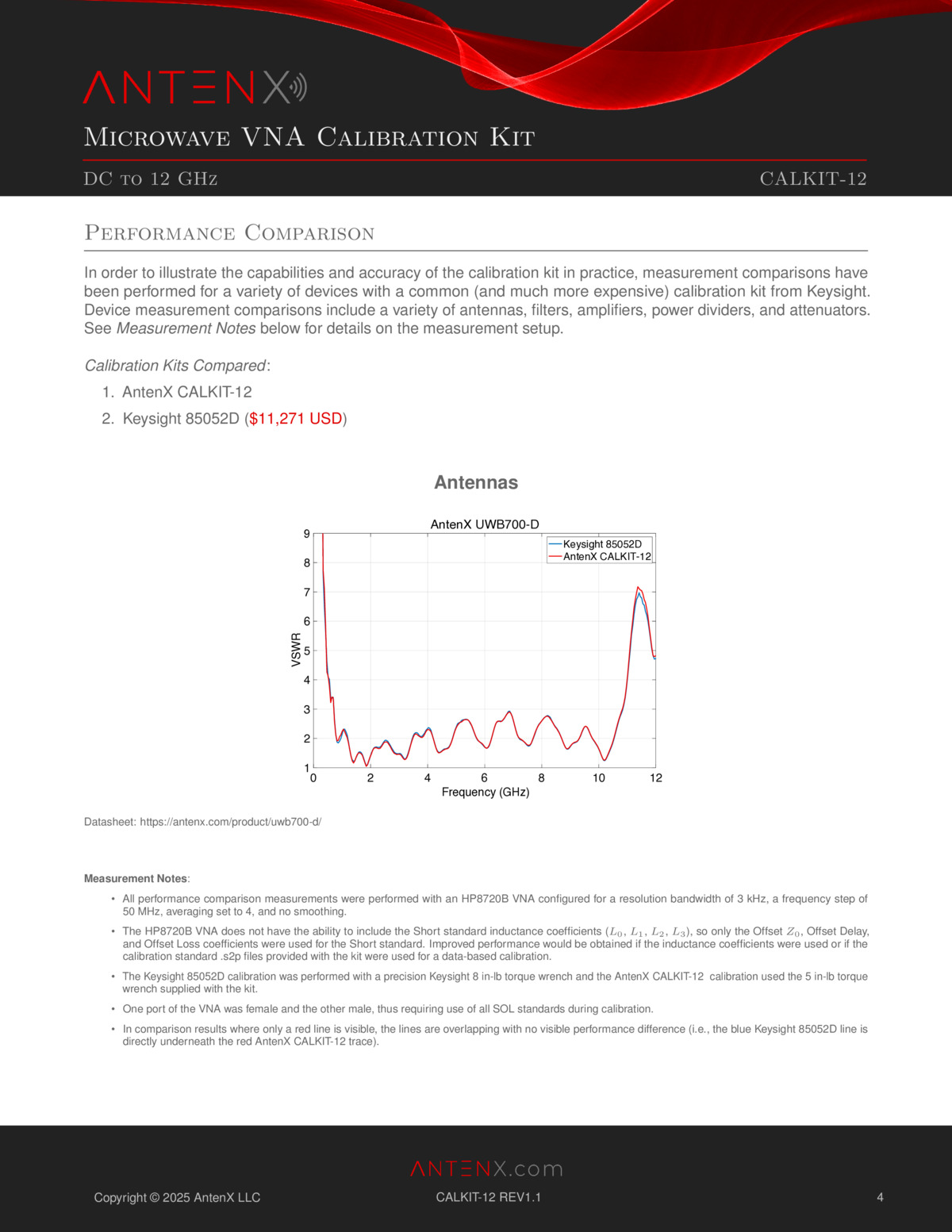

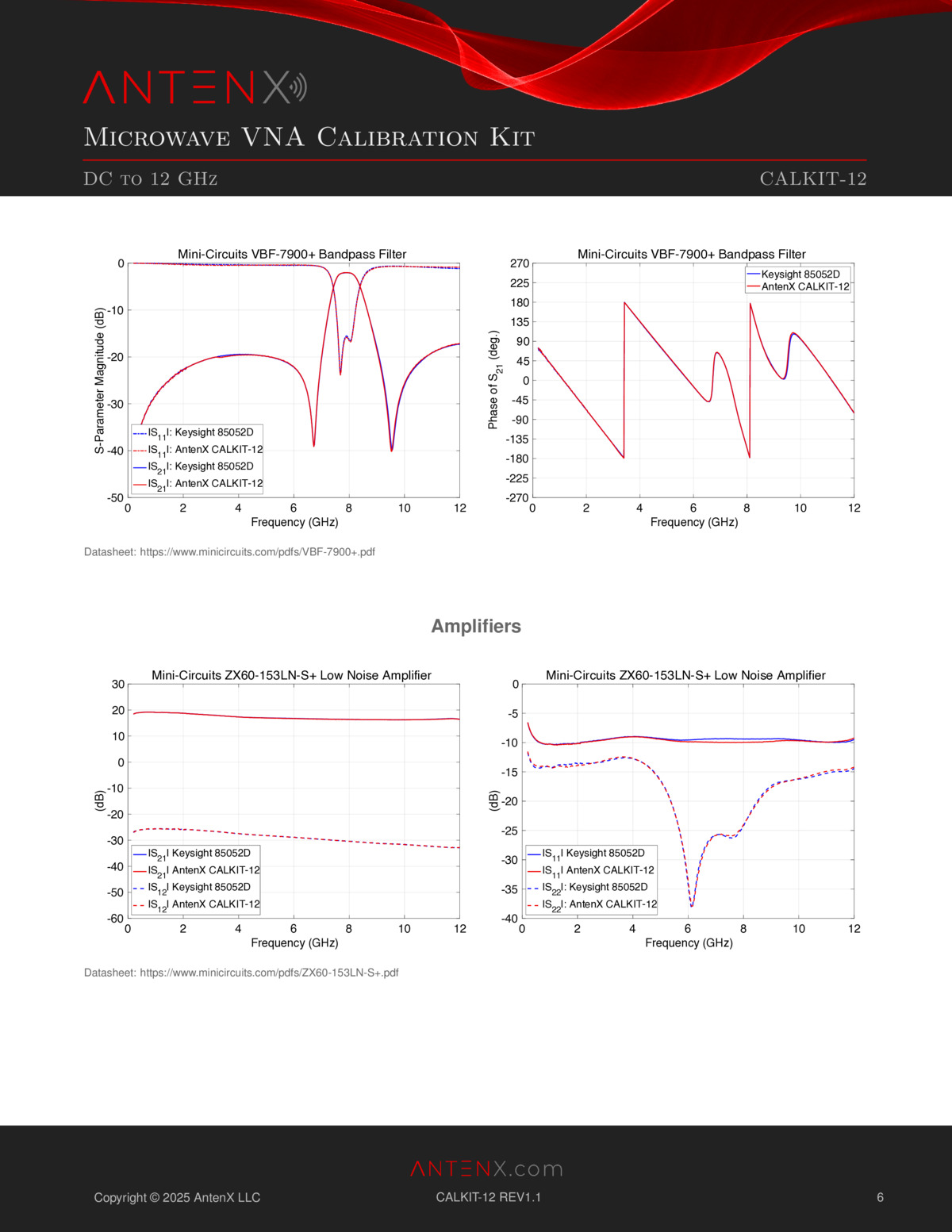

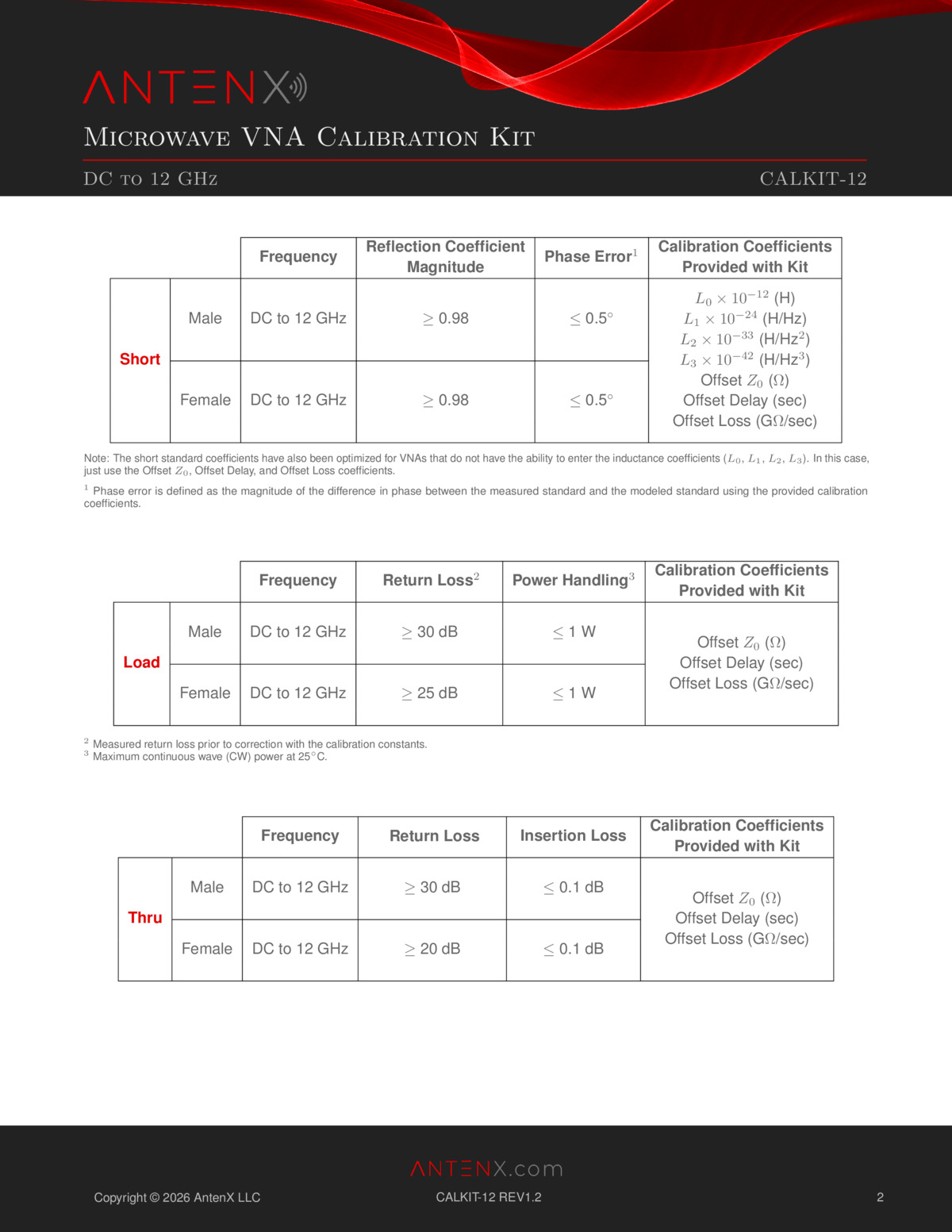

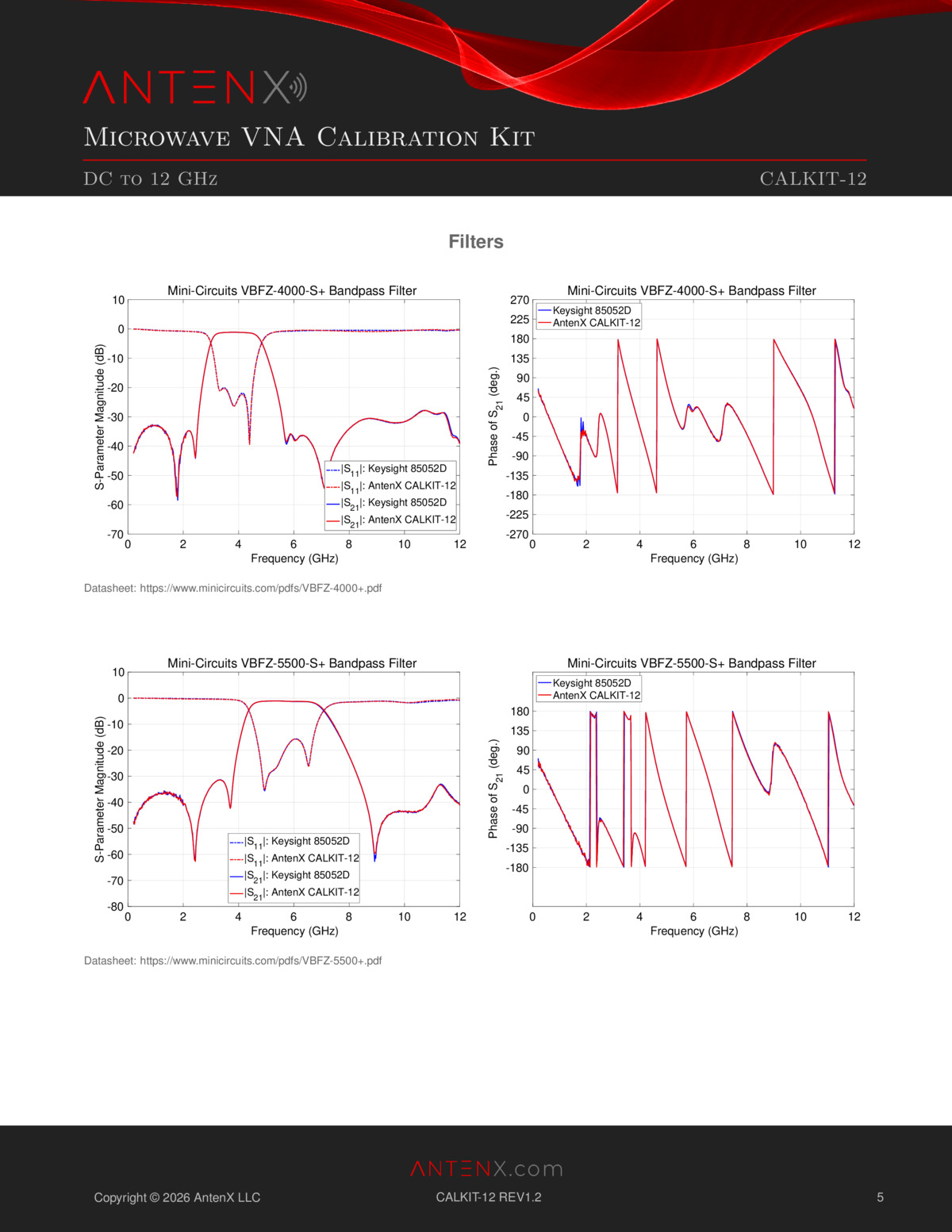

- Performance comparisons provided with well-known much more expensive calibration kit allowing you to determine if the accuracy of the kit is suitable for your application (see datasheets)
What's Included in the Kit
- Male and female Short, Open, Load, Thru (SOLT) SMA calibration standards
- An SMA torque wrench calibrated to 5 lbs·in (0.56 N·m)
- Calibration constants specific for each kit as well as .s2p files for each standard for use with VNAs that support data-file based calibrations on a USB flash drive
- A 6-dB attenuator for verification purposes is included along with its measured performance results that can be used to indicate an accurate calibration
- An open-ended wrench suitable for use with the standards together with the torque wrench
- Rugged custom case designed to perfectly fit and protect the calibration kit components
Product Downloads
- CALKIT-6 (DC to 6 GHz)
- CALKIT-8 (DC to 8 GHz)
- CALKIT-10 (DC to 10 GHz)

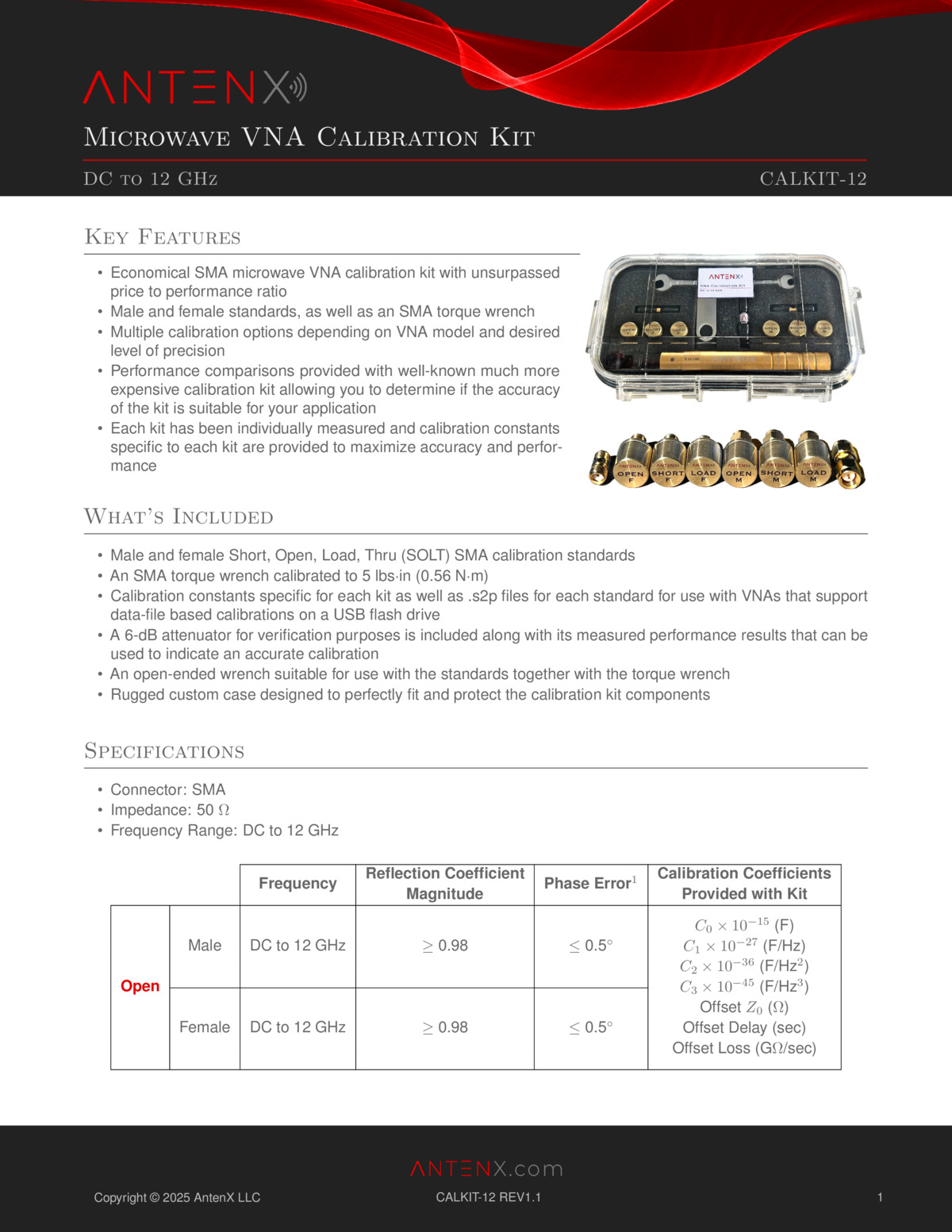

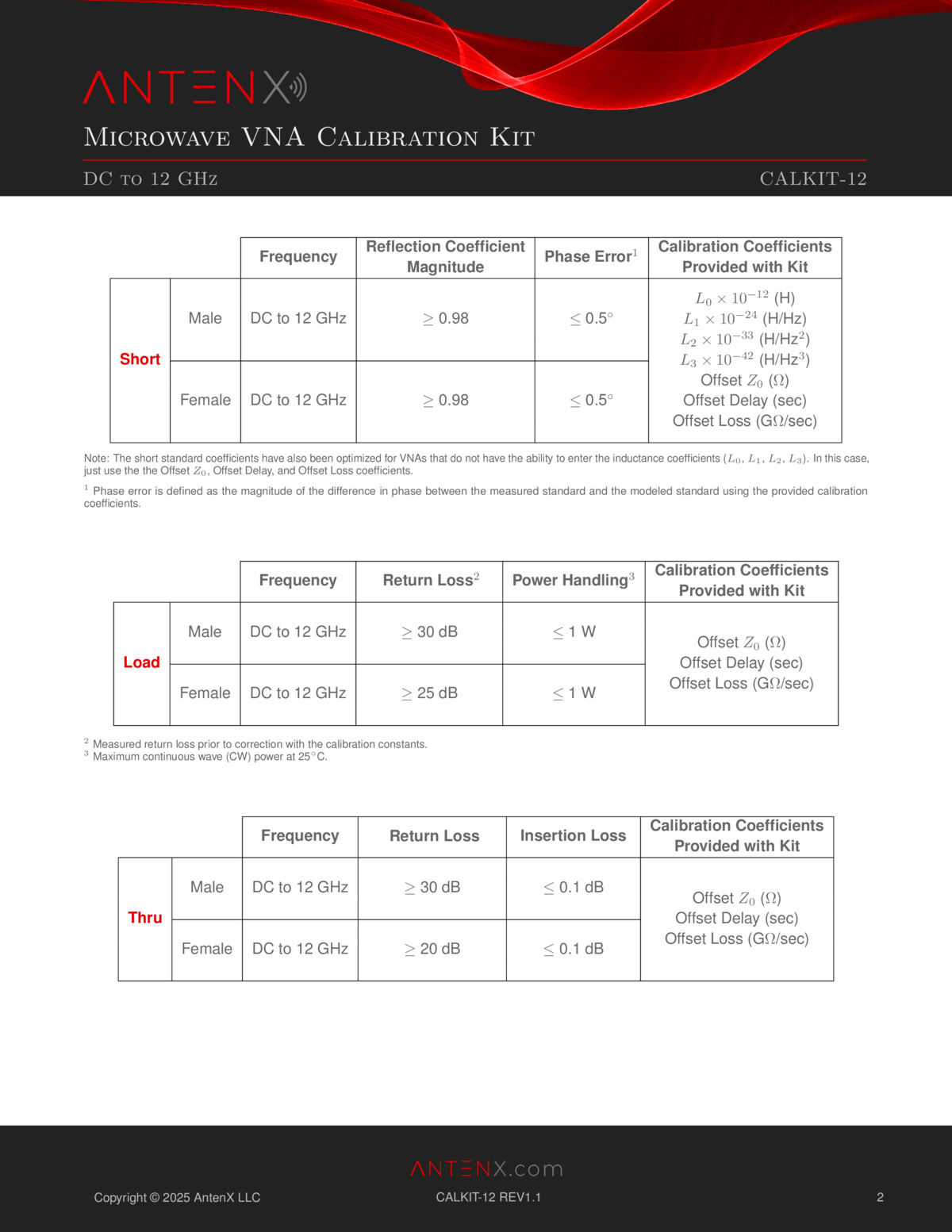

- CALKIT-12 (DC to 12 GHz)
- CALKIT-15 (DC to 15 GHz)
