FREQUENCY
0.75–8 GHz
TYP. PEAK GAIN
11 dBi
TYP. VSWR
< 2:1
MATERIAL
Aluminum
Rugged all-metal build
Durable aluminum body, 2.5 lb (1.15 kg), N-type connector.
Measured test report
VSWR and boresight gain documented per unit.
Designed in the USA
Designed, assembled, and tested in California.
Product Details
The DRHA750 is a broadband dual-ridge horn antenna that delivers consistent directional radiation patterns and usable gain continuously from 750 MHz to 8 GHz, a 10.7:1 bandwidth. Its rugged aluminum body and stable beamwidth make it well suited to EMC testing, antenna characterization, electronic warfare test and evaluation, and wideband signal monitoring. The antenna feeds through an N-type female connector and handles up to 50 W of input power.
- Suited to EMC radiated emissions and immunity testing, antenna characterization, electronic warfare test and evaluation, and wideband signal monitoring.
- Dual-ridge design maintains a directional pattern and usable gain across the full 750 MHz to 8 GHz range.
- Rugged aluminum construction with an N-type female connector and 1/4-20 mounting holes.
- Handles up to 50 W of input power.
- Each unit ships with a measured test report of VSWR and boresight gain; raw data (.txt/.csv) and custom characterization available on request.
Specifications
General
| Design | Dual-ridge horn |
| Polarization | Linear (H/V by orientation) |
| Connector | N female |
| Impedance | 50 Ω |
| Maximum input power | 50 W |
| Construction | Aluminum with PCB sides |
| Mounting | 1/4-20 threaded holes |

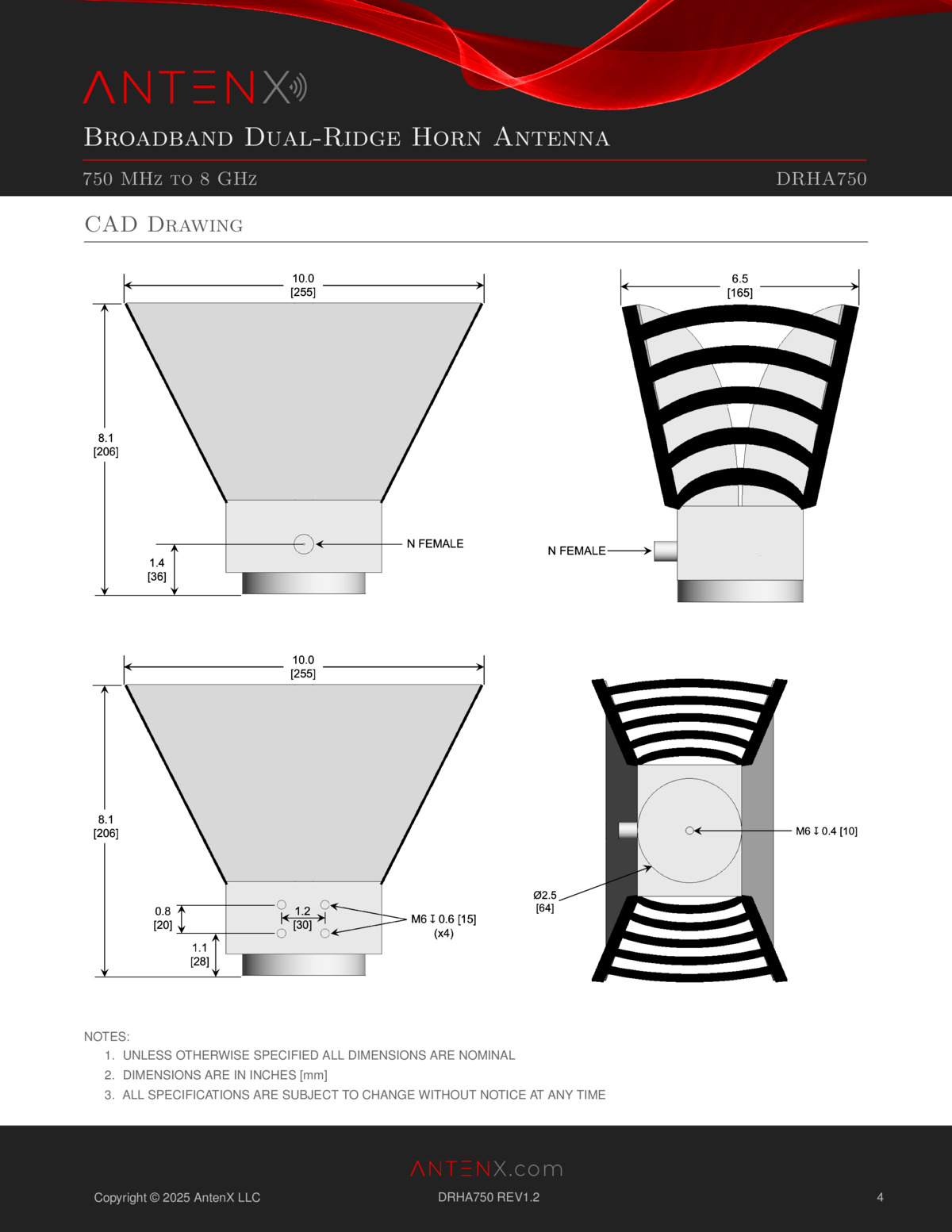

| Dimensions (L × W × H) | 206 × 255 × 165 mm (8.1 × 10.0 × 6.5 in) |
| Weight | 1.15 kg (2.5 lb) |
Performance over frequency
| PARAMETER | FREQUENCY | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|
| VSWR | 0.75 – 1.0 GHz | – | 2.0 | 3.5 | – |
| 1.0 – 3.0 GHz | – | 1.8 | 3.0 | ||
| 3.0 – 8.0 GHz | – | 1.4 | 3.2 | ||
| Gain | 0.75 – 1.0 GHz | 4.0 | 6.5 | 8.5 | dBi |
| 1.0 – 3.0 GHz | 6.5 | 10.0 | 13.0 | ||
| 3.0 – 8.0 GHz | 8.0 | 11.0 | 14.0 | ||
| HPBW, E-plane | 0.75 – 8.0 GHz | 36 | 50 | 128 | deg |
| HPBW, H-plane | 0.75 – 8.0 GHz | 18 | 45 | 80 |
Specifications are typical and subject to change without notice. Each unit ships with a measured test report.
