FREQUENCY
2–15 GHz
TYP. VSWR
≤ 1.8:1
−10 dB BEAMWIDTH
∼130°
POLARIZATION
Linear (H/V)
Compact & lightweight
2.5 in dia × 1.0 in and just 2.1 oz (60 g).
Measured test report
VSWR and boresight gain documented per unit.
Designed in the USA
Designed, assembled, and tested in California.
Product Details

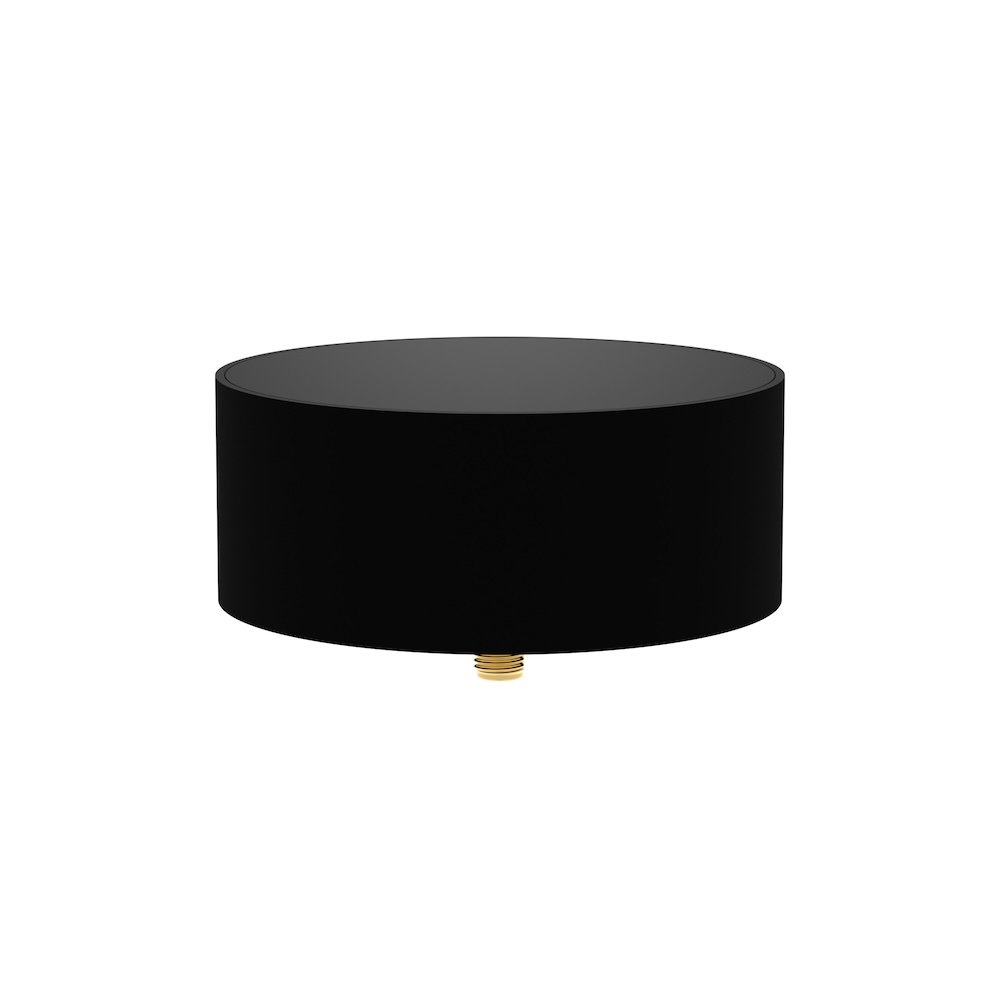

The SINU2000-LP is a compact cavity-backed 2-arm sinuous antenna that delivers linear polarization continuously from 2 to 15 GHz from a single element. Its cavity-backed, unidirectional pattern and wide, symmetric E- and H-plane beams (roughly 130° at −10 dB) make it well suited to electronic warfare, ES/SIGINT, spectrum monitoring, and broadband test and measurement. Its small footprint and low weight (2.5 in diameter, 60 g) make it easy to platform-mount. Each antenna is built around a PCB sinuous element in an anodized-aluminum cavity; polarization is linear, with the plane set by the mounting orientation. The antenna feeds through an SMA female connector and handles up to 10 W of input power.
- Suited to electronic warfare, electronic support measures and signals intelligence (ES/SIGINT), spectrum monitoring, and broadband test and measurement.
- Cavity-backed 2-arm sinuous design gives a unidirectional pattern and continuous operation across the full 2 to 15 GHz range.

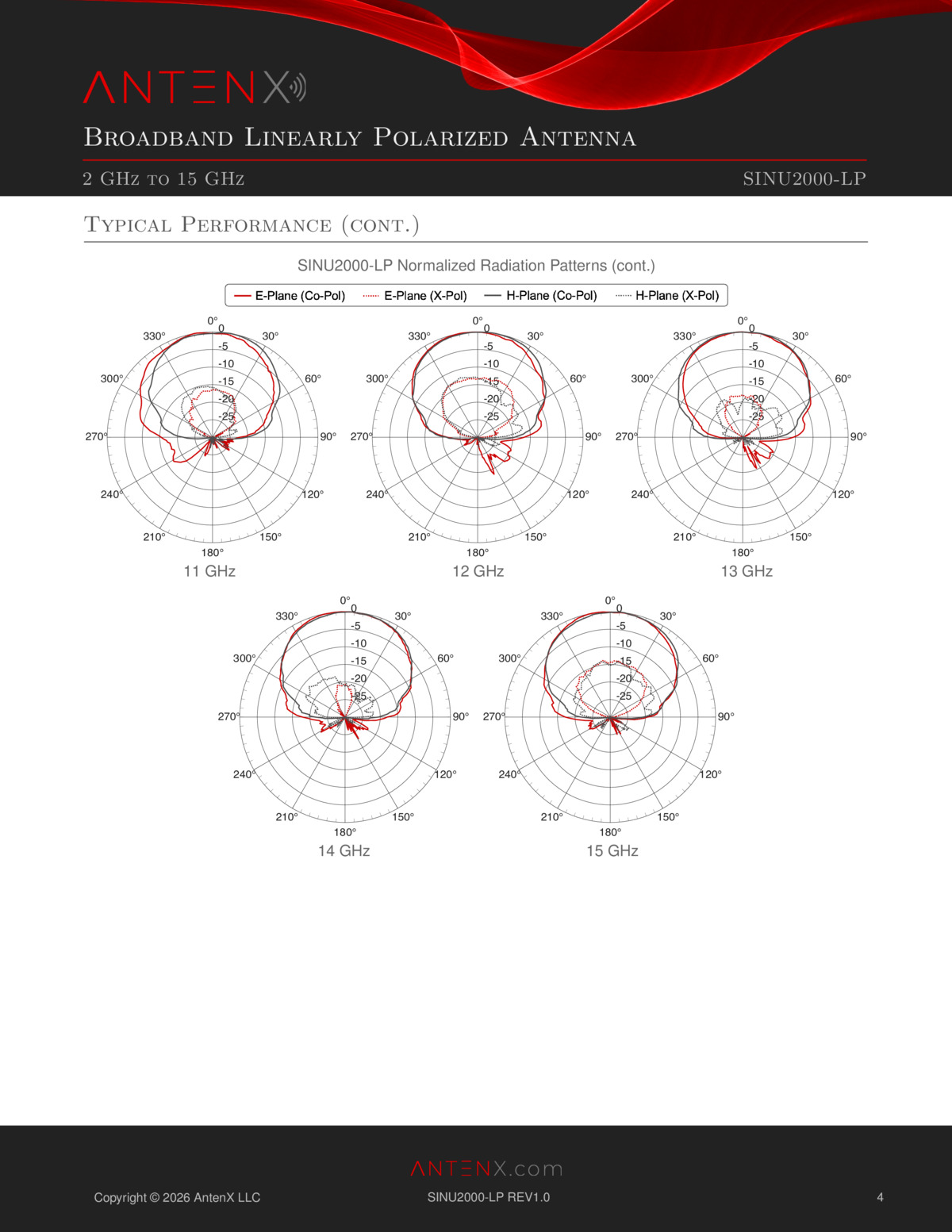

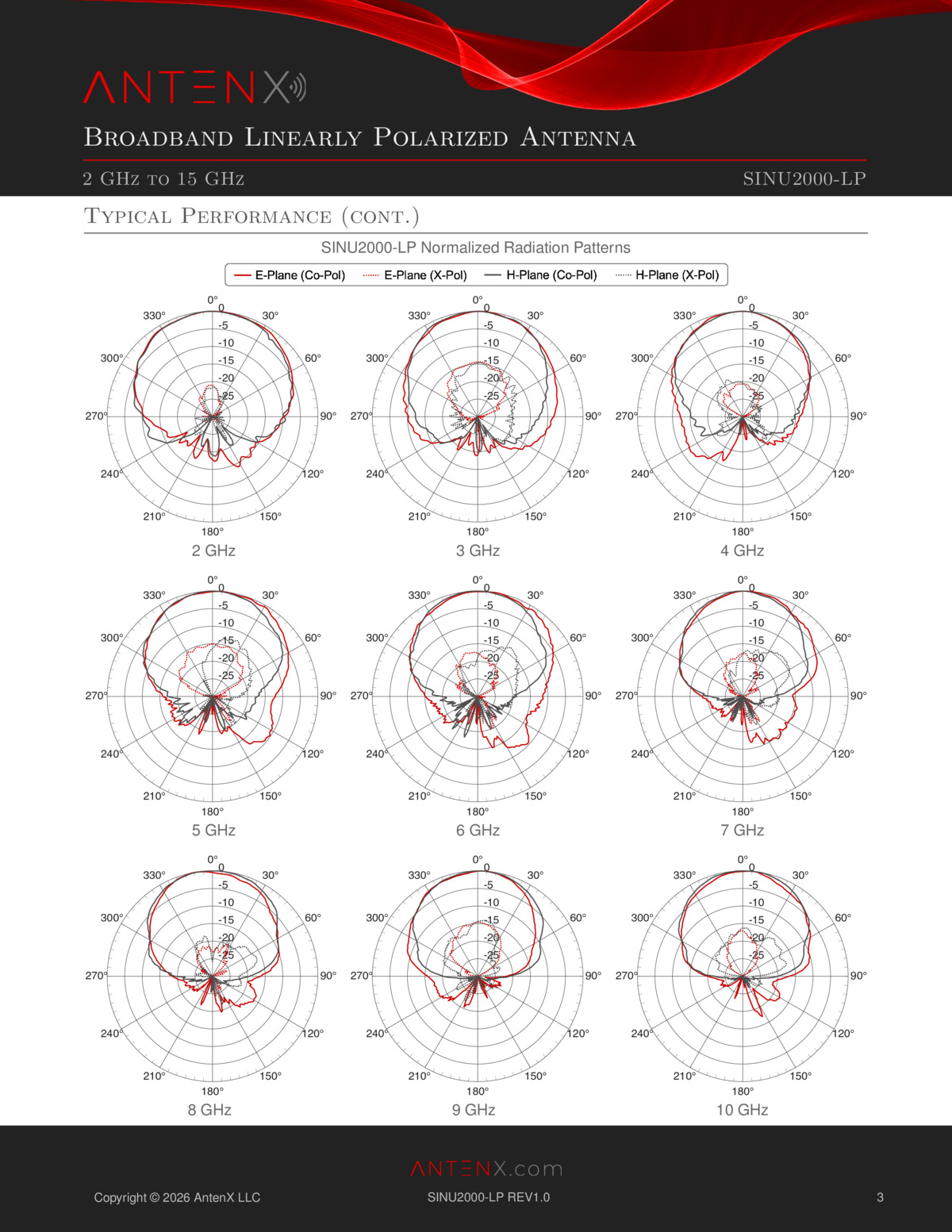

- Wide, symmetric E- and H-plane beams (~130° at −10 dB) provide a broad angular field of view.
- Compact and lightweight (2.5 in diameter, 60 g) for straightforward platform mounting.

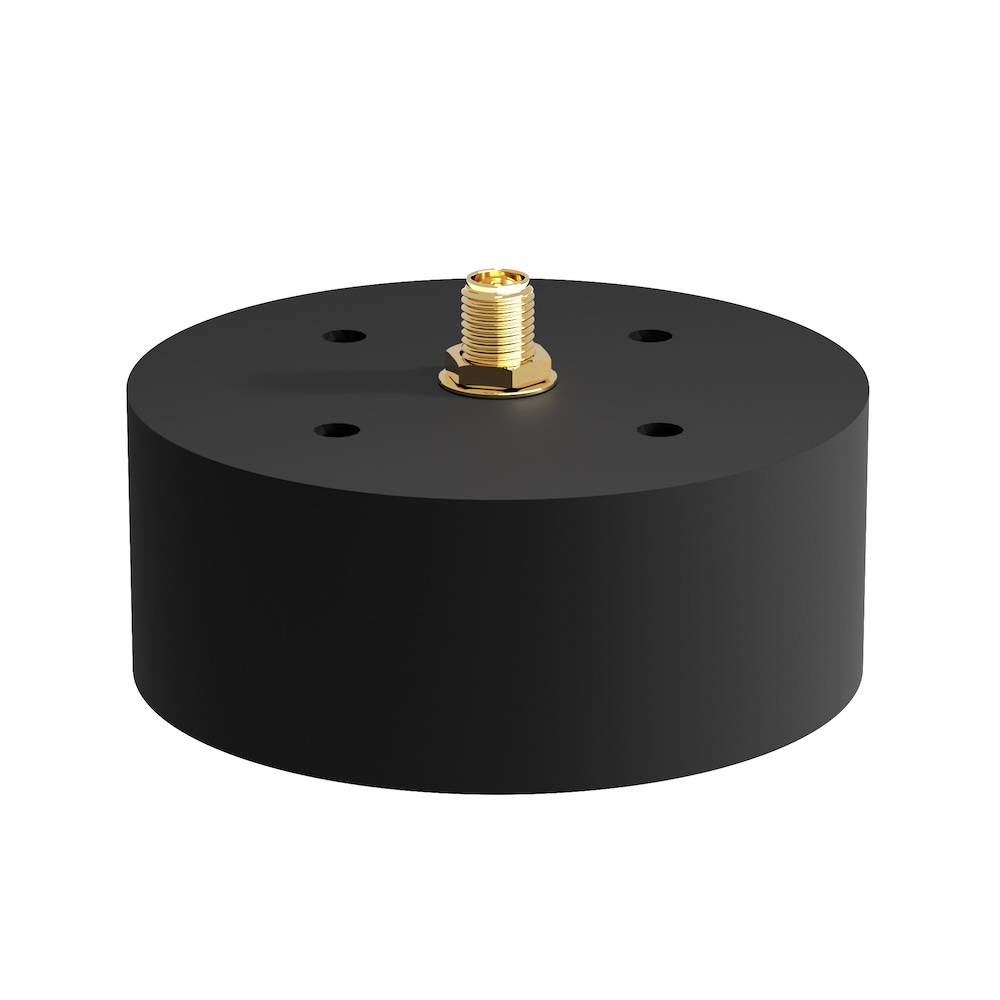

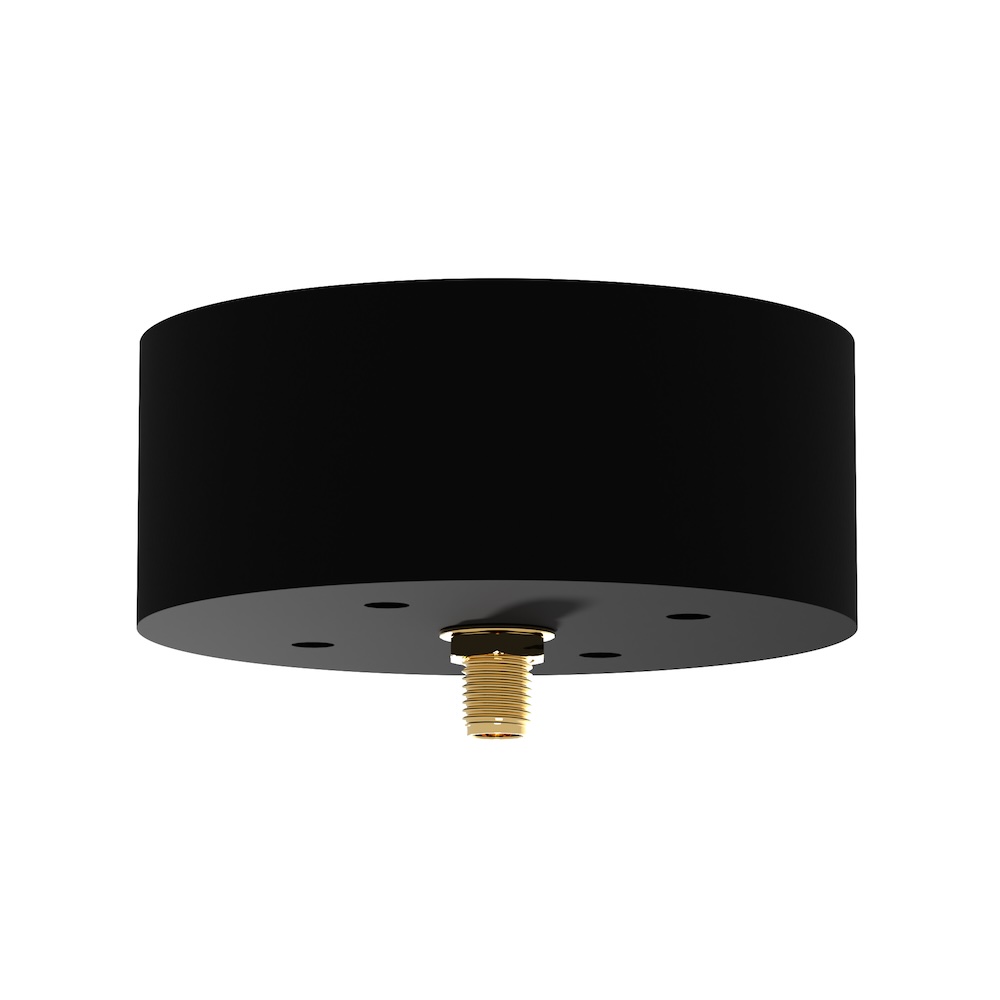

- Linear polarization with well-matched VSWR; SMA female connector with #10-24 mounting; handles up to 10 W. Each unit ships with a measured test report of VSWR and boresight gain.

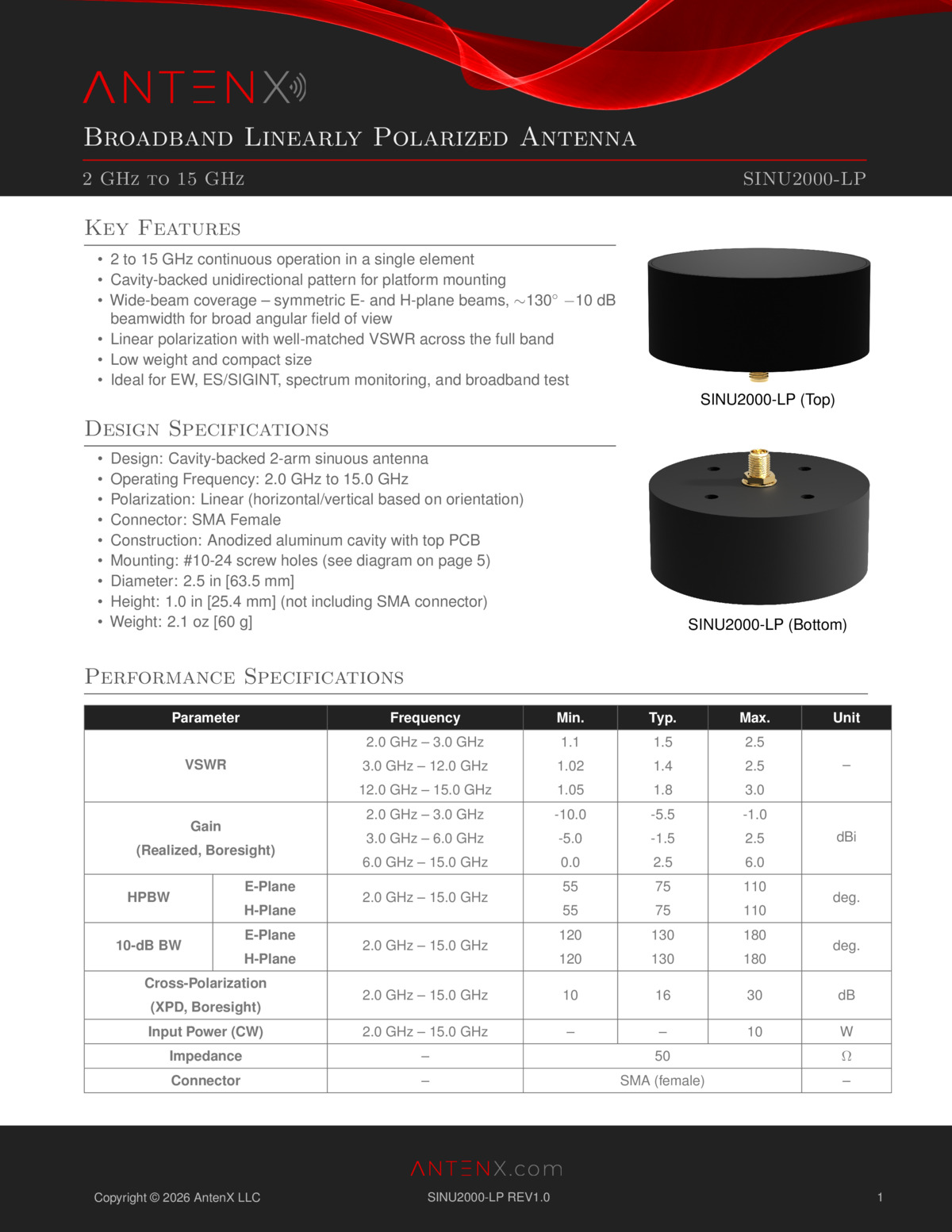

Specifications
General
| Design | Cavity-backed 2-arm sinuous |
| Polarization | Linear (H/V by orientation) |
| Connector | SMA female |
| Impedance | 50 Ω |
| Maximum input power | 10 W |
| Construction | Anodized aluminum cavity with PCB sinuous element |
| Mounting | #10-24 threaded holes |

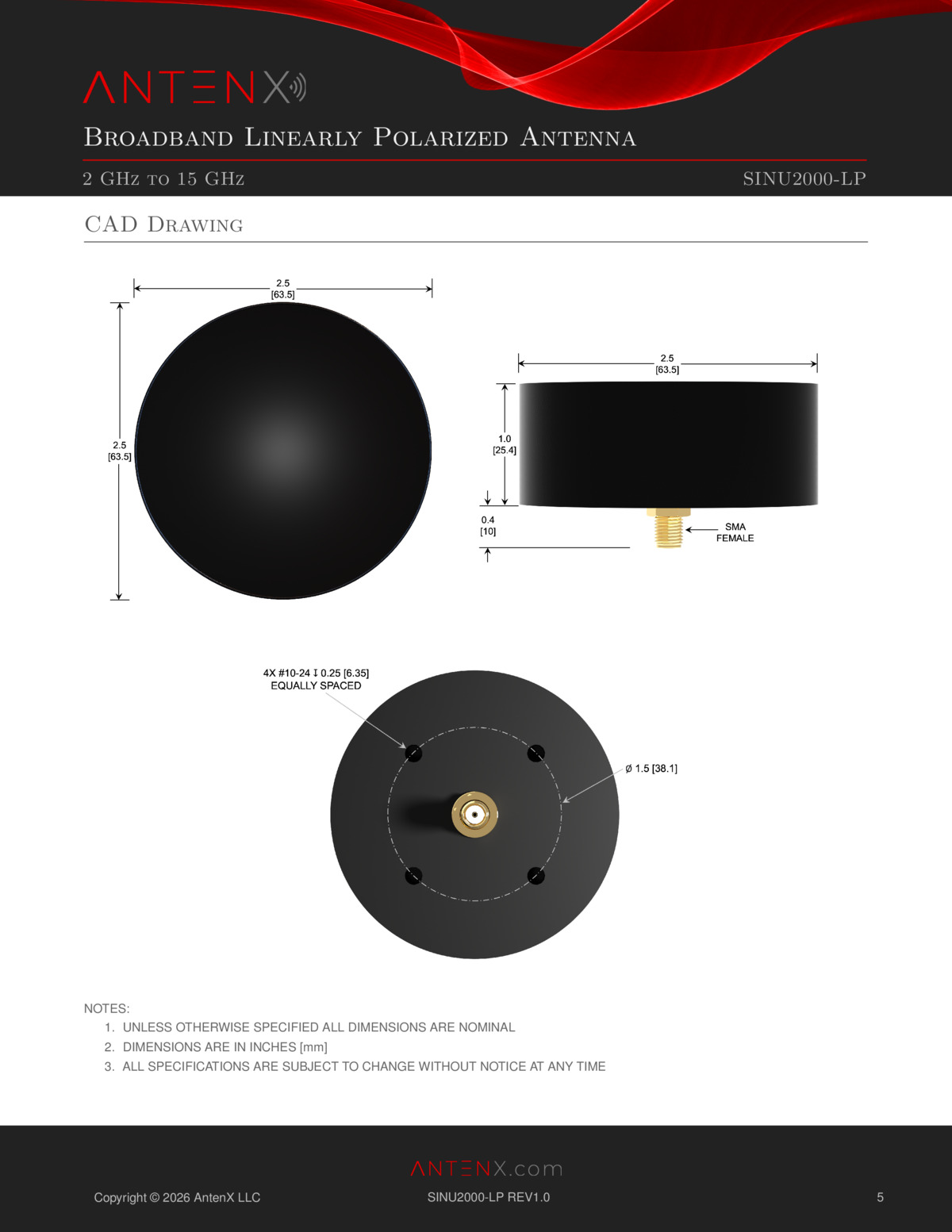

| Dimensions (dia × H) | 63.5 mm dia × 25.4 mm (2.5 × 1.0 in) |
| Weight | 60 g (2.1 oz) |
Performance
| PARAMETER | FREQUENCY | MIN | TYP | MAX | UNIT |
|---|---|---|---|---|---|

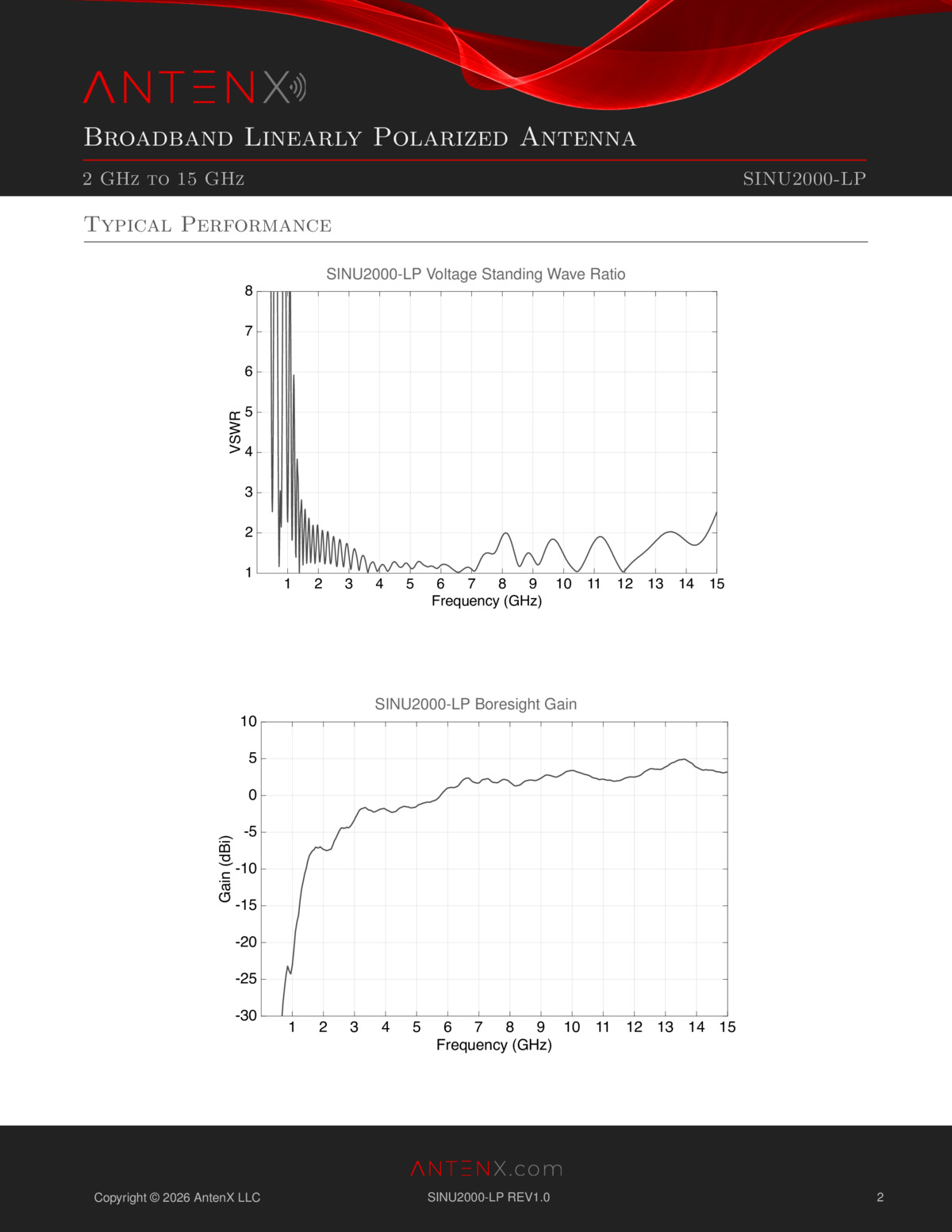

| VSWR | 2.0 – 3.0 GHz | 1.1 | 1.5 | 2.5 | – |
| 3.0 – 12.0 GHz | 1.02 | 1.4 | 2.5 | ||
| 12.0 – 15.0 GHz | 1.05 | 1.8 | 3.0 | ||
| Gain | 2.0 – 3.0 GHz | -10.0 | -5.5 | -1.0 | dBi |
| 3.0 – 6.0 GHz | -5.0 | -1.5 | 2.5 | ||
| 6.0 – 15.0 GHz | 0.0 | 2.5 | 6.0 | ||
| Cross-pol (XPD) | 2.0 – 15.0 GHz | 10 | 16 | 30 | dB |
| HPBW (E & H) | 2.0 – 15.0 GHz | 55 | 75 | 110 | deg |
| −10 dB BW (E & H) | 2.0 – 15.0 GHz | 120 | 130 | 180 |
Specifications are typical and subject to change without notice. Height excludes the SMA connector. Each unit ships with a measured test report.
