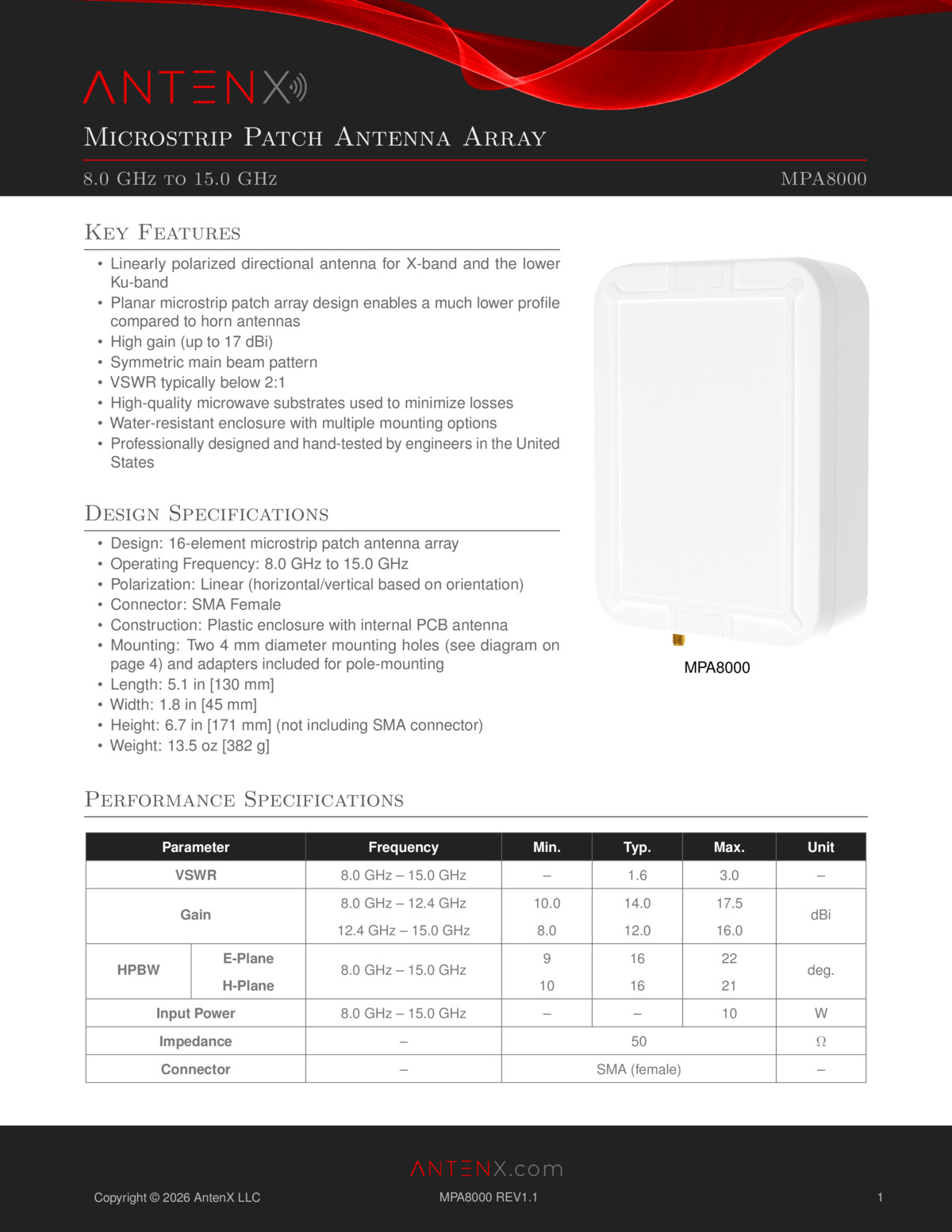

The MPA8000 is a 16-element planar microstrip patch antenna array covering 8 to 15 GHz, spanning X-band and the lower Ku-band. It delivers a symmetric, directional main beam with gain up to 17 dBi from a low-profile panel that is far thinner than an equivalent horn, which makes it easy to mount on a mast or surface where a bulky aperture will not fit. The array is linearly polarized and housed in a water-resistant enclosure with pole-mount hardware included, suiting it to directional links, radar and sensing, signal monitoring, and outdoor test installations.

• 16-element planar microstrip patch array covering 8 to 15 GHz (X-band and lower Ku-band) with a symmetric main beam.
• High directivity, gain up to 17 dBi, in a low-profile panel far thinner than an equivalent horn.
• Linearly polarized, 50 Ω, SMA female; handles up to 10 W of input power.

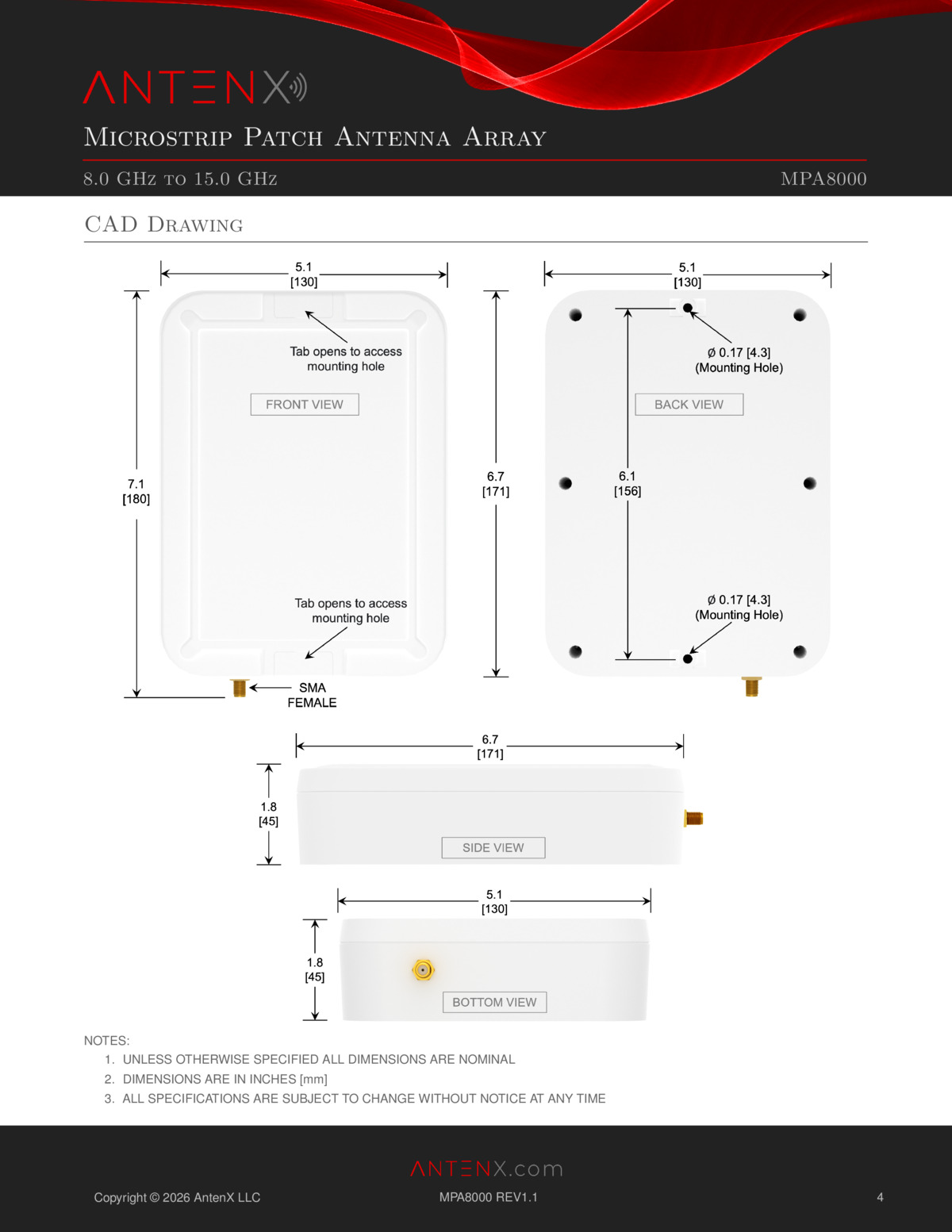

• Housed in a water-resistant enclosure with two 4 mm mounting holes and pole-mount adapters included.

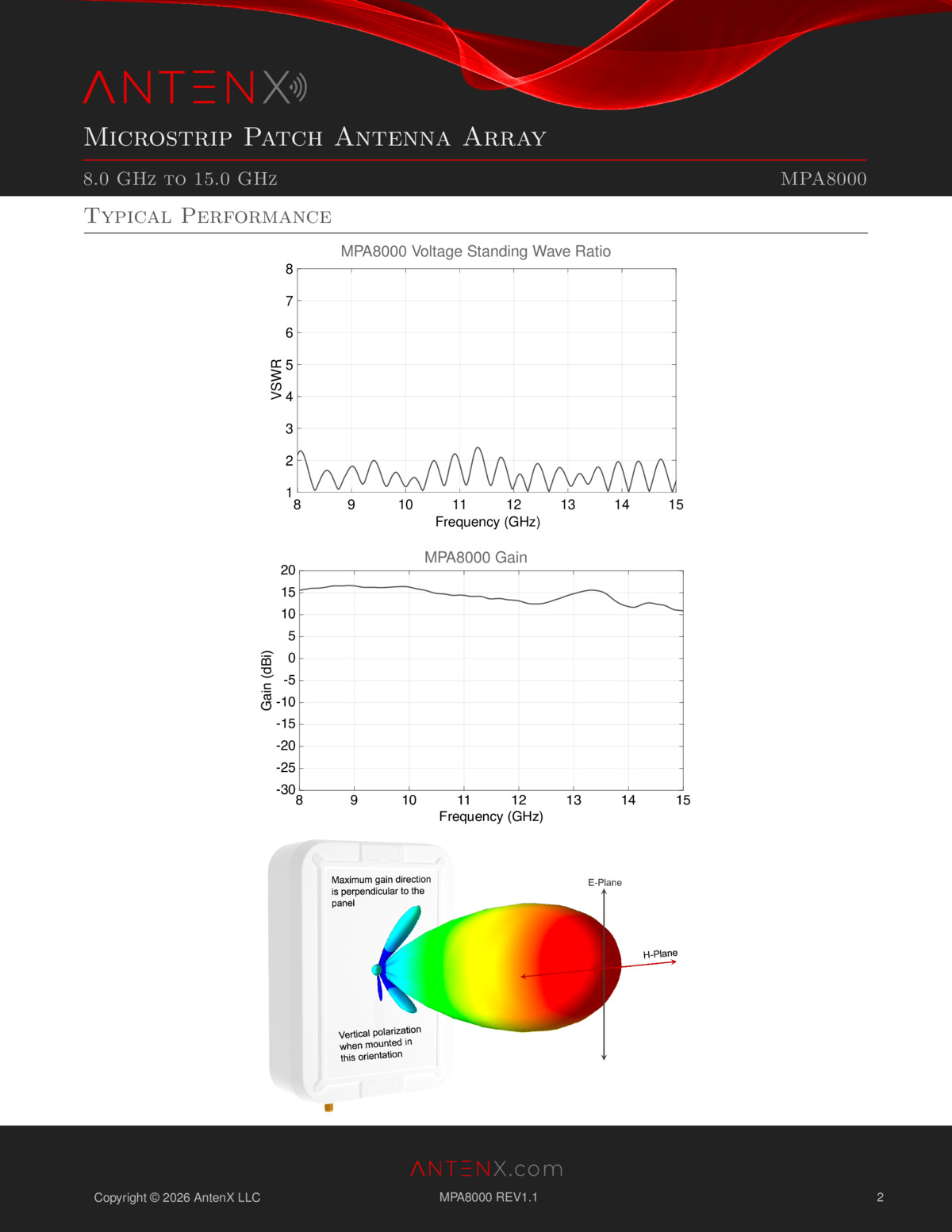

• Each unit ships with a measured test report of VSWR and boresight gain from 8 to 15 GHz; raw data (.txt/.s1p) available on request.
• Suited to directional point-to-point links, radar and sensing, signal monitoring, and outdoor test installations.
